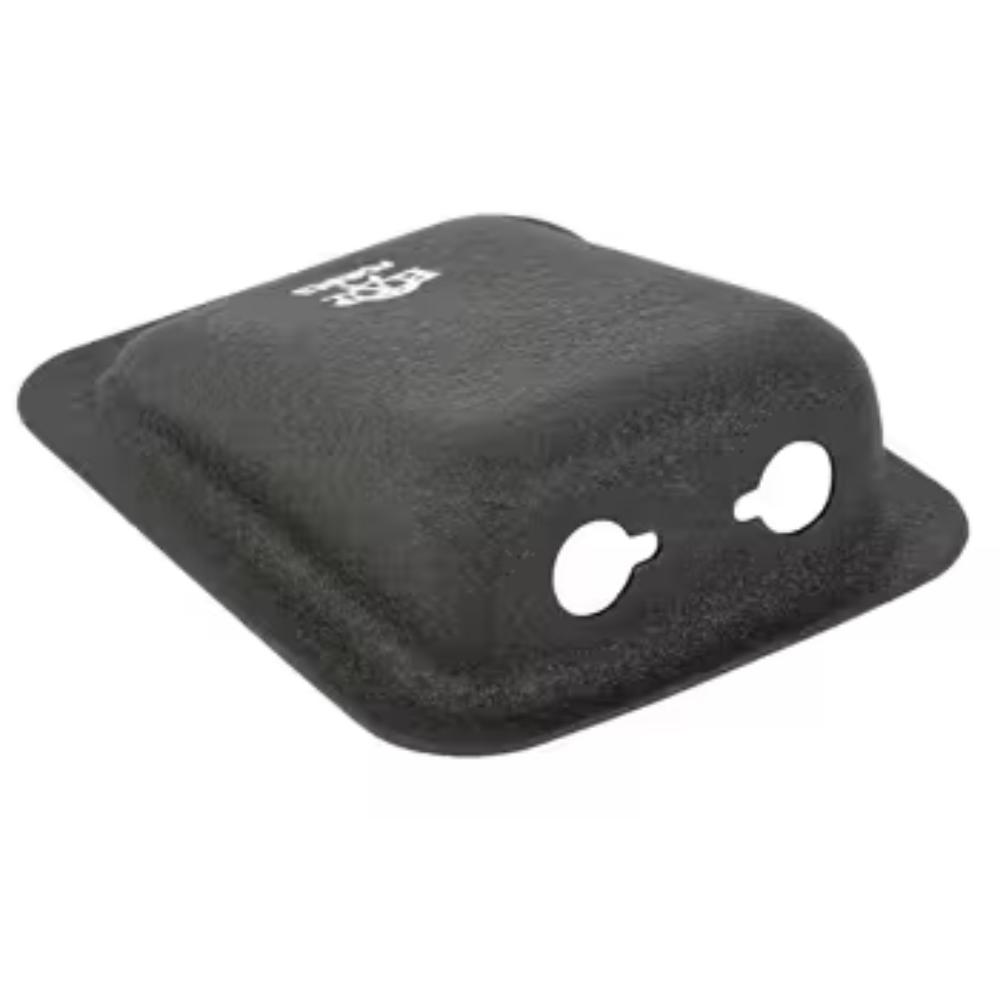

FLUSH MOUNT JACK HOUSING/Black aluminum, powder coat finish, cut-out required. Height: 1.06 Width: 2.9 Length: 3.56
$38.64
12
Items sold in last 13 days
7
People watching this product now!
Description
Jack Housing – Recessed Mounted
- Designed for the head set plugs to be recessed out of the way a real custom installation.
- Compete with housing, clamp and mounting screw & washer
Dimension: W= 2.9 , L= 3.56″” to outer edge of flange H= 1.06.
Holes .380 dia. x 1.0 between center
Cut-out required W= 2.38 , L= 3.19.
Part & assemble prints available.
Aluminum black finish
Additional information
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Forbes |
