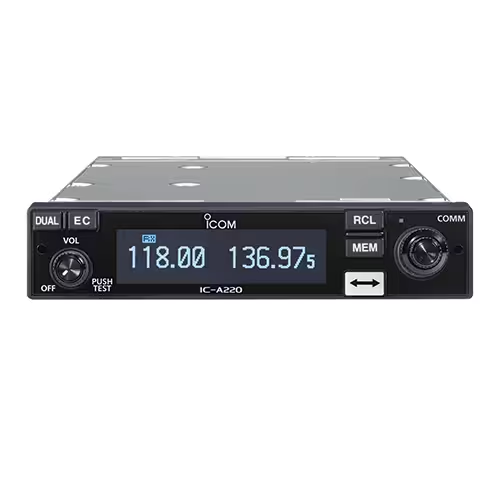

IC-A220T VHF Airband Transceiver | Panel Mount, TSO

The IC-A220 VHF Airband Transceiver features an innovative, easy to read OLED display. It provides higher contrast, wider viewing angle of nearly 180 degrees, and faster response time than a conventional LCD. The most frequently used FLIP-FLOP (Frequency exchange) switch button is designed large enough to be pushed with ease. Adjustable audio level and squelch control functions are also featured.

The IC-A220 also has a built-in voice-activated intercom function allowing the pilot to talk with the copilot via the headset. Additionally, the IC-A220 has 20 memory channels and 20 history memory channels respectively. Often used memory channels can be instantly recalled. Group memory channels are organized into 10 memory channels by five groups (total 50 channels). Weather channel scanning function searches for weather channel signals.

When combined with the IC-A220, the optional PS-80 power supply provides a convenient base station operation on the ground.

This version is TSO approved and includes the panel mounting tray and install kit.

Features

• Meets RTCA-160G requirements for use in strict environments
• Used for a primary VHF radio in general aviation (part 23) class aircraft
• Accepted for ETSO approval under the TSO/ETSO reciprocal acceptance policy
• Bright and easy to read organic light-emitting diode (OLED) display
• Wide 170-degree viewing angle with auto dimmer function
• The “flip-flop” arrow button allows for easy channel switching
• Auto stack memory makes it easier to recall the last 20 channels used
• Automatic or manual squelch operation
• Built-in DC-DC converter accepts a 12/24V DC power source f
• Build-in, voice-activated intercom function
• Industry-standard, 25-pin D-sub connector
• 20 regular memory channels with a 6-character channel name
• 50 group memory channels (10 Ch x 5) groups with a channel tag
• Automatic weather channel scanning and receive (USA version only)
• Dualwatch and priority functions
• One-touch access to 121.5 MHz emergency frequency
• Sidetone function for monitoring your voice with headset
• ANL (automatic noise limiter) function reduces pulse-type noise
• Remote control capability
• PC programming capability
• Dial lock and panel lock
• Time-out timer
• D-sub 25-pin industry-standard connector for easy installation
• Slim 1.34 inch (34 mm) height can be installed in a limited panel space
• Two types of menu mode: settings menu and configuration menu

Specifications

• Weight: 1.2 kg (2.65 lb ±10%)
• Dimensions (Projections not included): 160 x 34 x 271 mm (6.3 x 1.34 x 10.67 in)
• Frequency Spacing: 8.33 kHz/25 kHz
• Mode: AM (6K00A3E, 5K60A3E)
• Frequency Stability: ±5 ppm
• Operating Temperature: –20˚C to 55˚C (–4˚F to 131˚F)
• Antenna Impedance: 50Ω
• Number of Memory Channels: 20 regular, 50 group memory, 20 history, 10 weather channels
• Power Supply Requirement: 13.8VDC / 27.5VDC (negative ground)
• Output power: 8W (carrier power)
• Spurious Emission: –60 dBc
• Modulation Limiting: 70% (Maximum 98%)
• Microphone Impedance: 600Ω
• Intermediate Frequencies: 38.85 MHz/450 kHz (1st/2nd)
• Sensitivity: AM (6 dB S/N): less than 2 μV FM (12 dB SINAD) less than 1.4 μV
• Selectivity: 25 kHz spacing: ±3 kHz/±22 kHz (6 dB/60 dB) 8.33 kHz spacing: ±2.778 kHz/±7.37 kHz (6 dB/60 dB)
• Spurious Response: More than 74 dBμ
• Audio Output Power: External SP: 5 W with a 4Ω load Headphone: 60 mW with a 500Ω load
• Certification: TSO-C128a, TSO-C169a
