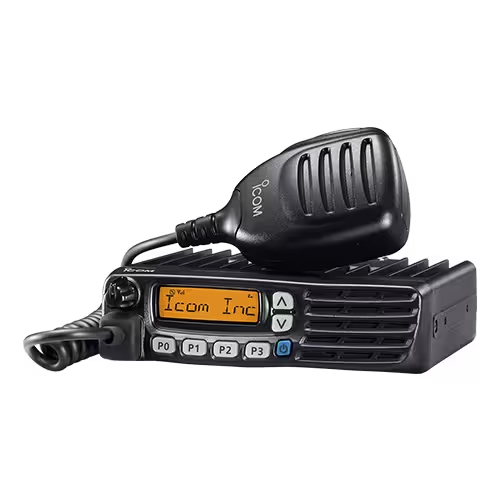

IC-F6021 UHF Mobile Transceiver | 400–470 MHz & 450–512 MHz, 128 Channels, 45 W

The F6021 Series UHF transceiver is ideal for small-to-mid-sized systems for public safety, large industry to light commercial users. This transceiver offers multiple signaling, advanced scanning, improved external channel control capability, and wide frequency coverage packed in a compact body. This rugged mobile easily exceeds your expectations with its reliable performance and communication quality.

Features

• Embedded ESN
• ±2.5ppm frequency stability
• Microphone hanger action programmable
• Optional DTMF microphone (HM-152T)
• 8 DTMF autodial memories
• BIIS 1200 PTT ID transmission
• Power-on password function
• Nuisance delete function
• Time-out-timer, Lock-out penalty timer and more
• Accessories Included:
• Microphone, HM-152
• Microphone hanger and its cable
• Mounting bracket kit
• DC power cable
• Function name sticker

Specifications

• Weight: 2.4 lb (1.1 kg)
• Dimensions: 5.91 x 1.57 x 6.59 in (150 x 40 x 167.5 mm)
• Frequency Coverage: 400–470 MHz, 450–512 MHz
• Number of Channels: 128 Channels; 8 Zones
• Channel Spacing: 12.5 kHz, 15 kHz
• Type of Emission: 11K0F3E
• RF Output Power: 45 W
• Current Drain: 45 W: 14.0 A Rx (Standby): 300 mA RX (Max Audio): 1.2 A
• Spurious Emissions: 70 dB
• Frequency Stability: ±2.5 ppm
• Audio Harmonic Distortion: 3% typical; 40% deviation
• FM Hum and Noise: 40 dB
• Sensitivity at 12 dB SINAD: 0.25 µV
• Adjacent Channel Selectivity: 65 dB
• Spurious Response Rejection: 80 dB
• Intermodulation Rejection: 75 dB
• AF Output Power: 4 W
