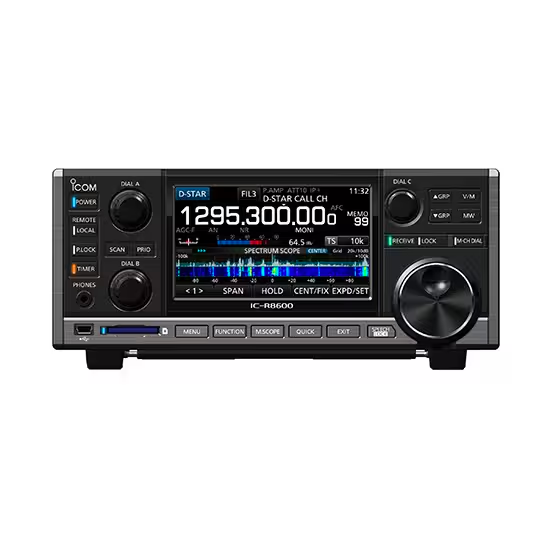

IC-R8600 Communications Receiver | 10kHz-3.0GHz Super Wideband, Unblocked

The IC-R8600 is a super wideband 10 kHz to 3 GHz communication receiver that enables a wide variety of signals to be heard and seen in various ways. Diverse digital communication signals can be decoded while advanced FPGA processing technologies implemented provide clarity and accuracy of received signals. With the optional remote control software for a Windows® PC, received audio and spectrum scope data can be transferred through an IP network for monitoring from remote locations.

Features

• 10 kHz to 3 GHz Super Wideband Coverage
• Absolute Value of RSSI (Received Signal Strength Indicator)
• Software Demodulation in FPGA Processing
• Superb Receiver Performance
• Up to 2000 regular memory channels assignable to 100 groups
• Multiple scan functions
• Real-time Spectrum Scope with Waterfall Function
• Quick, Smooth and Intuitive Operation
• SD Card Slot for Receiver Recorder
• Remote Control Function through IP Network or USB Cable
• I/Q Signal Output

Specifications

• Weight: 9.5 lb
• Dimensions: 8.7 x 9.1 x 3.5 in.
• Antenna Connector: ANT 1 (0.01–3000 MHz): Type-N (50 Ω) ANT 2 (0.01–30 MHz): PL-259 (50 Ω) ANT 3 (0.01–30 MHz): RCA (500 Ω)
• Mode: USB, LSB, CW, FSK, AM, FM, WFM, Digital (D-STAR, P25 Phase 1, NXDN, dPMR, DCR)
• Number of Channels: 2000 regular with 100 groups, 200 auto memory write, 100 skip and 100 scan edge channels
• Scan Types: Programmed, memory, selected memory, selected mode, auto memory write, priority scan and Δf scan
• Power Supply Requirement: 13.8 V DC ±15%
• DC Current Drain: Stand-by: 1.8 A, Maximum audio: 2.0 A
• Operating Temperature Range: –10 ˚C to +60 ˚C; 14 ˚F to 140 ˚F
• Frequency Resolution: 1 Hz
• Audio Output Power: More than 2.0 W (8 Ω load, 10% distortion)
