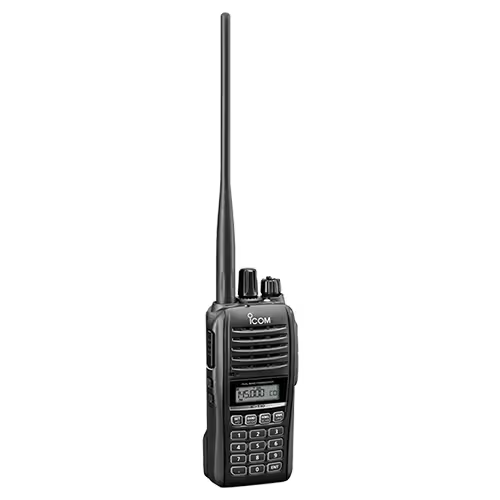

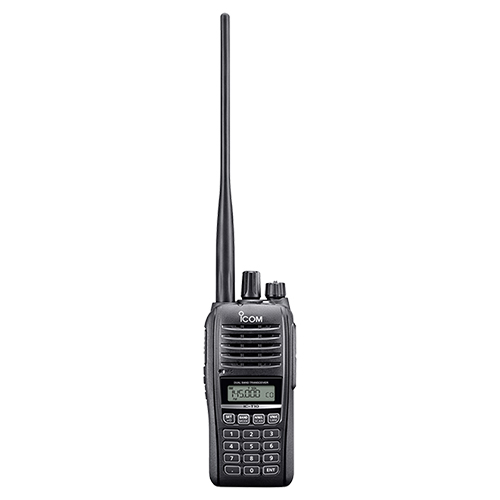

IC-T10 Dual Band FM Transceiver | VHF/UHF, TX: 144–148, 430–450 MHz, RX: 136–174, 400–479 MHz, FM Broadcast: 88–108 MHz

The IC-T10 is a simple yet powerful dual-band handheld designed with a high waterproof rating, ready for whatever field activities lie ahead. Featuring 5W RF output on 144 and 430 MHz and an IP67 dust-tight and waterproof design, it can handle tough conditions with ease. Enjoy loud and clear audio from the 1500 mW speaker, or pair with the optional HM-222HLWP loud audio speaker-mic for added functionality. Quickly access the calling channel with the top-mounted home button and take advantage of the built-in FM broadcast receiver for versatile listening. With up to 11 hours of operating time, this handheld is as reliable as it is rugged.

Features

• DC power operation with optional AD-149H
• Free CS-T10 downloadable programming software
• Built-in CTCSS/DTCS for repeater operation
• Total of 208 memory channels with 6 character channel name
• 16 DTMF autodial memories
• Priority, Program, Memory, Skip, and Tone Scan
• Direct-conversion system eliminates IF stages
• Supplied Accessories:
• BP-280 Battery Pack
• FA-S270C Antenna
• MB-133 Belt Clip
• BC-213 Rapid Charger
• AC Adapter (BC-242 or BC-123SA/SE)

Specifications

• Weight: 9.8 oz (278 g)
• Dimensions: 2.1 × 4.4 × 1.2 in (52.2 × 111.8 × 30.3 mm)
• Frequency Coverage: TX: 144–148, 430–450 MHz RX: 136–174, 400–479 MHz FM Broadcast: 88–108 MHz
• Number of Channels: 208 Channels
• Type of Emission: F2D, F3E (FM)
• Frequency Stability: ±2.5 ppm (–20°C to +60°C on the basis of 25°C)
• Power Supply Requirement: 7.2 V DC nominal; External DC power: 10–16 V DC (with AD-149H)
• Current Drain: Tx High: Less than 2.5 A Rx Max Audio: Less than 600 mA
• Antenna Impedance: 50 Ω (SMA)
• Operating Temperature: –4°F to +140°F ( –20°C to +60°C)
