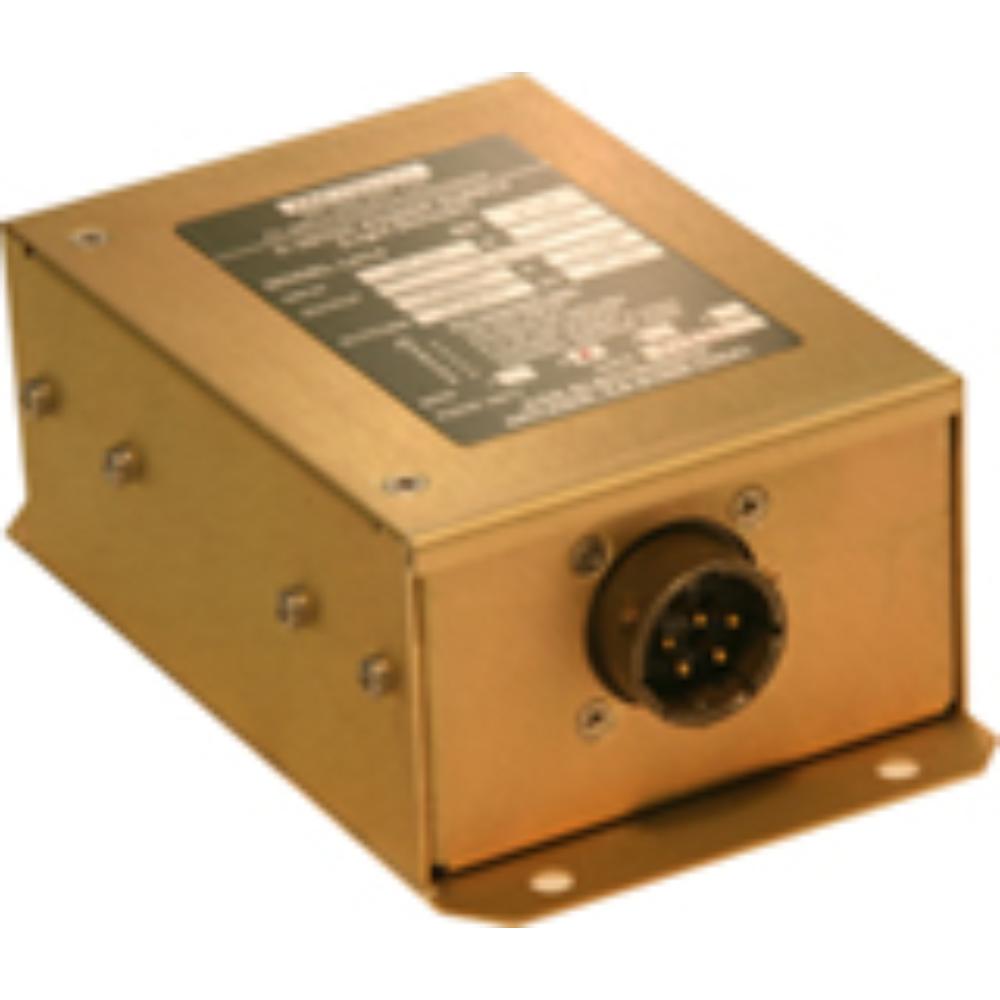

TSO’d REGULATED DC TO DC POWER CONVERTER
(0-5 Vdc High Power Light Dimmer)
Description:
- The LF10 is a pulse width modulated dc to dc converter that provides regulated 0 to 5 Vdc power up to 20 amperes.
- The output voltage is varied by a slider voltage 0-5 Vdc applied at pin D from a remote control potentiometer 5K ohm 1/2 watt to ground or directly from a 0-5 Vdc source.
- An internal trim pot is provided to adjust the output voltage within the range from 4.9 Vdc to 5.25 Vdc at its full clockwise position of the external pot.
- Circuit protection includes low input voltage shutdown, soft start, high input voltage shutdown, output over voltage limit and output short circuit current limit.
Features:
- State of the art design for regulation and positive logic for output overvoltage protection.
- Other LT-3XX Series available in various output voltage and power ratings in the same package, or special units can be provided for various output combinations.
- Maximum output voltage is adjustable with an internal trim pot.
- Designed to meet various applicable portions MIL-STD 704 notice 3, MiL-STD-202 and MIL-T-5422F class IA.
- The Model LT-3XX Series is serviceable, small and lightweight (42 watts per pound and 1.7 watts per cubic inch)
Specifications
Input Voltage
28 Vdc NOM., 18 to 32 Vdc
28 Vdc NOM., 18 to 32 Vdc
Input Current
4.7 Amps typ at 28 Vdc input & @ FL
0.2 Amps maximum at no load
4.7 Amps typ at 28 Vdc input & @ FL
0.2 Amps maximum at no load
Output Voltage
0-5 Vdc regulated
0-5 Vdc regulated
Output Current
0-20 Amps continuous
0-20 Amps continuous
Regulation
3% for load, 2% for line and 3% for temperature
3% for load, 2% for line and 3% for temperature
Ripple
50 mVpp maximum
50 mVpp maximum
Overload(OL)
Deliver 110% output power for 2 hours
Deliver 110% output power for 2 hours
Protection (OL)
Withstands without damage or degradation load exceeding 110% to an output short circuit. Unit delivers rated output power upon removal of the overload condition
Withstands without damage or degradation load exceeding 110% to an output short circuit. Unit delivers rated output power upon removal of the overload condition
Protection (SC)
Under a output short circuit condition, the input current folds back and the output current is limited to 30 amperes
Under a output short circuit condition, the input current folds back and the output current is limited to 30 amperes
Protection (OV)
Output voltage is limited to 6.5 Vdc maximum
Output voltage is limited to 6.5 Vdc maximum
Soft-Start
Minimum soft start delay of 200 mSec at full load is provided during an application of step input voltage to reduce output in rush current to cold (low) resistance of incandescent lamps.
Minimum soft start delay of 200 mSec at full load is provided during an application of step input voltage to reduce output in rush current to cold (low) resistance of incandescent lamps.
Shutdown (SD
Output shuts down when input voltage is below 13 Vdc and above 42 Vdc
Output shuts down when input voltage is below 13 Vdc and above 42 Vdc
Efficiency
75% typical
75% typical
Temperature
-55° C to +71° C
-55° C to +71° C
Altitude
55,000FT
55,000FT
Compliance
FAA TSO-C71
FAA TSO-C71
Environmental
DO-160C ENV. CAT F2ZBB(MLV)XXXDFSAAAXXXZKXX
DO-160C ENV. CAT F2ZBB(MLV)XXXDFSAAAXXXZKXX
Connector
Unit mates with MS3106A16S-1S or MS3456W16-1S or the equivalent
Unit mates with MS3106A16S-1S or MS3456W16-1S or the equivalent
Finish
Gold iridite per MIL-C-5541 Class 1A
Gold iridite per MIL-C-5541 Class 1A
Weight
1.0 LBS (454 grams)
1.0 LBS (454 grams)
Size
2.00 H x 3.38 W x 5.25 L inches
50.8 H x 85.8 W x 133.3 L mm
2.00 H x 3.38 W x 5.25 L inches
50.8 H x 85.8 W x 133.3 L mm
Less protrusion of connector and screw heads
