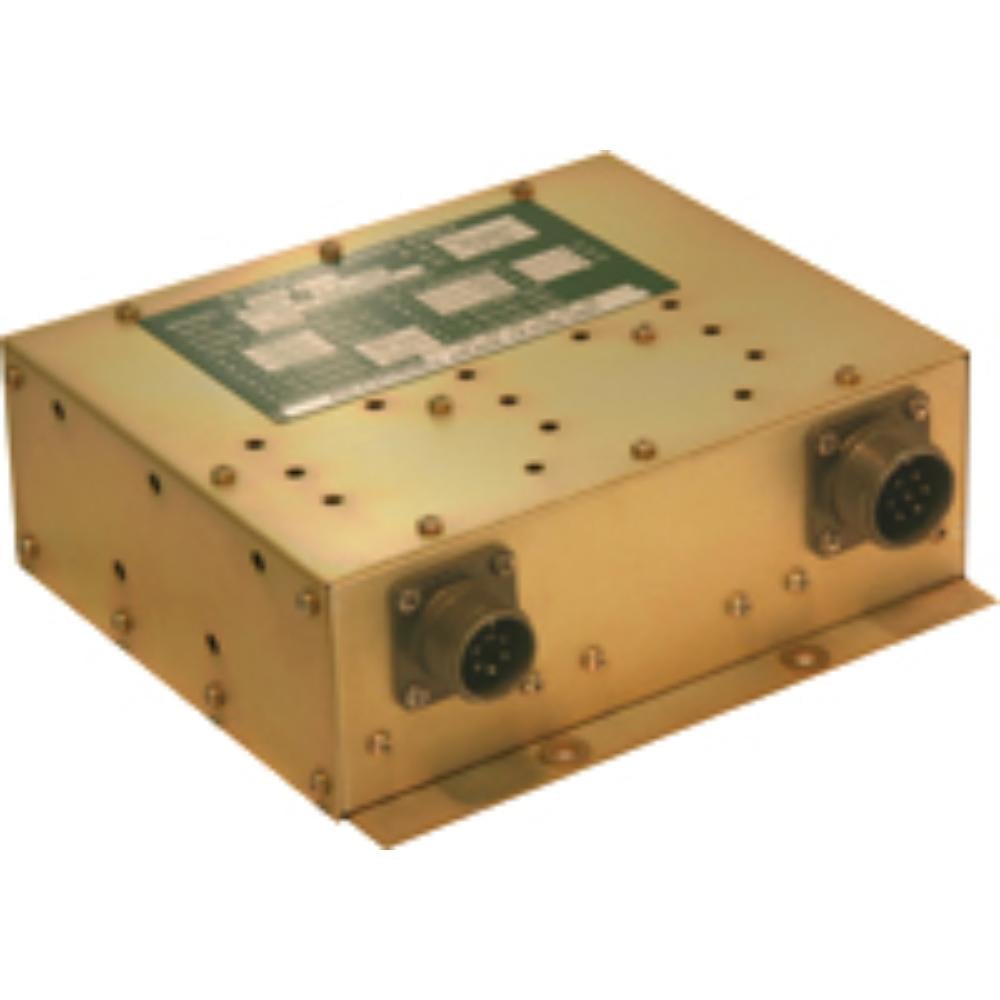

LT-352, LT-3100
Price range: $3,000.00 through $5,020.00
REGULATED DC TO DC POWER CONVERTER
MULTIPLE OUTPUT LIGHT DIMMER
The LT-3XX Series is a pulse width-modulated DC to DC converter that provides regulated multiple output power. The converter transforms an unregulated 28 VDC to a regulated and adjustable DC output via a remote control potentiometer or voltage for voltage controlled models. The Model LT-3XX Series is primarily designed to control the light intensity of incandescent bulbs in lighting systems. For special orders any three combinations of LT-52A, LT-53, LT-70, LT-73, LT-100 and LT-103 can be supplied.
Features:
- State of the art design for regulation and positive logic for output overvoltage protection.
- Other LT-3XX Series available in various output voltage and power ratings in the same package, or special units can be provided for various output combinations.
- Maximum output voltage is adjustable with an internal trim pot.
- Designed to meet various applicable portions MIL-STD 704 notice 3, MiL-STD-202 and MIL-T-5422F class IA.
- The Model LT-3XX Series is serviceable, small and lightweight (42 watts per pound and 1.7 watts per cubic inch)
Specifications
28 VDC nom., 20 to 40 VDC
Adjustable with external 5K ohm,1/2 W rheostat or voltage 0-5 VDC.
2% for line, 2% load and 2.5% temperature. Common mode isolation = 40 db.
25 mVp-p or less.
Input and output current pulse when overload exceeds approximately 125% of rating.
Output voltage is limited toapproximately 125% of rating eventhough remote control rheostat opens or internal failure occurs.
-55C to +71C (sufficient cooling required @ +71’C ambient)
55,000 ft.
6.5″ L x 6.7″ W x 2.4″ H.
16.5 cm L x 17 cm W x 6 cm H
3.6 lbs. (1634 grams).
| LT-3XX SERIES | LT-352 | LT-370 | LT-3100 |
| LT-353 | LT-373 | LT-3103 | |
| Max. Power Rating (watts) | 150 | 200 | 300 |
| Input Voltage (VDC) | 20 to 40 | 20 to 40 | 20 to 40 |
| Input Current (ACD) @ FIL * 20 VDC IN * 28 VDC IN |
11.8 7.2 |
12.8 9.2 |
17.8 12.8 |
| Output Voltages DC (three) | 0 to 5 | 0 to 12 | 0 to 28 |
| Output Current (ADC) Total | 30 | 17 | 11 |
| Efficiency | 75 | 78 | 84 |
| Brand | KGS Electronics |
|---|---|
| Model | LT-352, LT-353, LT-370, LT-373, LT-3100, LT-3103 |
