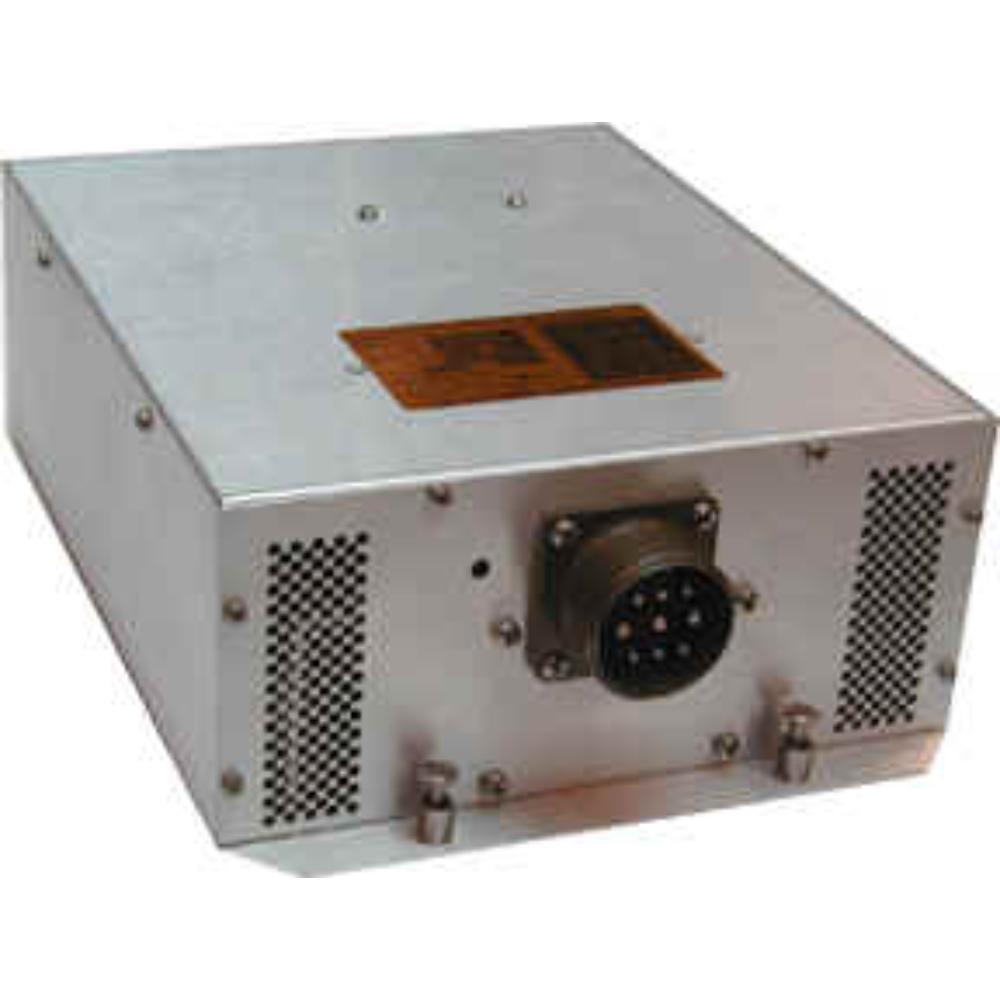

SRP-500-14
REGULATED AC TO DC POWER CONVERTER
The SRP-500-14 is a regulated transistorized AC to DC converter. The unit is primarily intended for vehicles with 120/208 VAC, 3 phase 4 wire Wye, 400 Hz electrical power systems and will provide for the operation of instruments and equipment requiring 13.75 VDC. Solid state circuitry adds increased reliability and performance to the unit.
Specifications
120/208 VAC, 3 phase 4 wire Wye, 60-400 Hz
2.0 amps/phase typical at 500 Watts
13.7 VDC
0-36 amps
500 Watts maximum
Delivers 120% of rated output current for at least 5 min.
75% typical at full load
-65° F to 160° F (-55°C TO 71°C)
55,000 ft.
7.75″ W x 10.6″ L x 3.6″H.
7.0 lbs.
| Brand | KGS Electronics |
|---|
