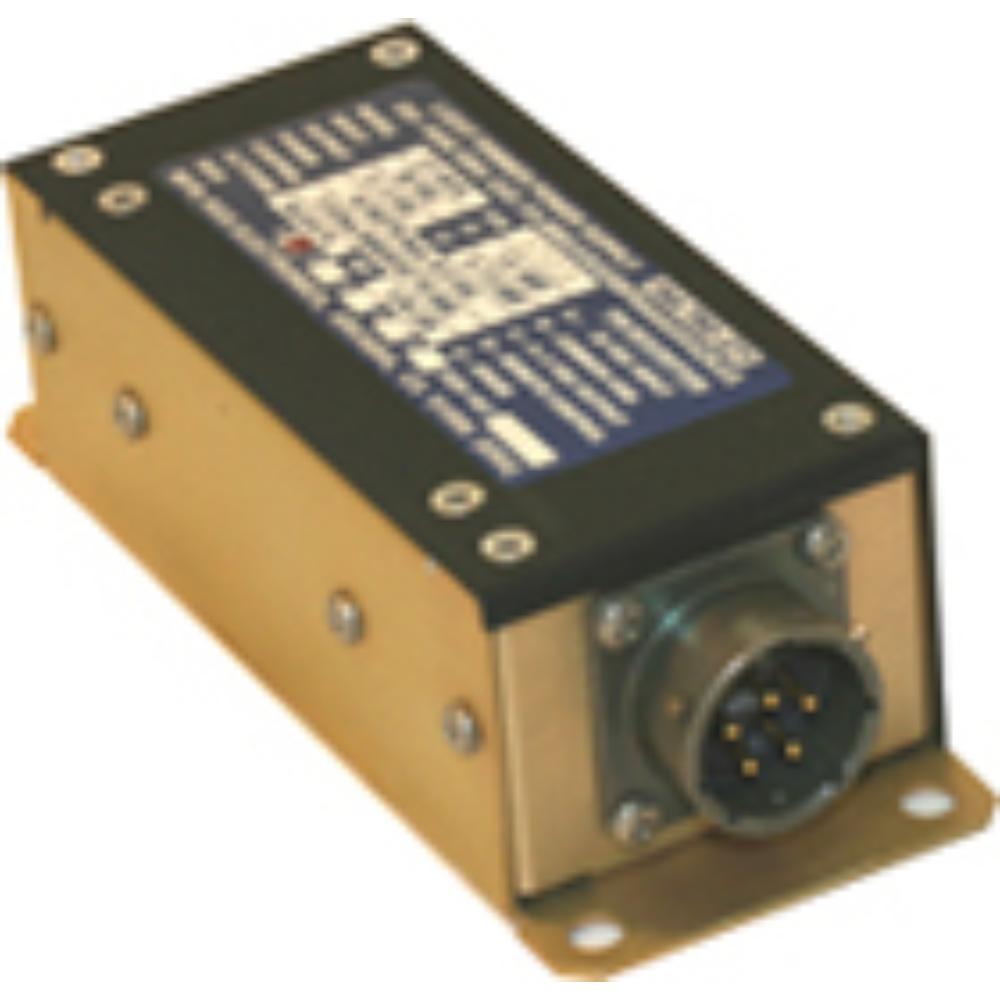

AIRBORNE REGULATED AC TO DC OFF-LINE CONVERTER
(115 Vac to 7.5 Vdc Fixed Output)
The PFA1 is a pulse width modulated ac to dc off-line converter that provides regulated 7.5 Vdc power up to 1.34 amperes. The output voltage is adjustable ± 1 volt by an internal trim pot and factory set to 7.5 Vdc at 1.34 amperes.The PFA1 output is isolated from H.V. input.
The PFA1 output is current limited.
Specifications
Input Voltage
115 Vac, 47 Hz to 440 Hz
115 Vac, 47 Hz to 440 Hz
Normal
105 Vac to 125 Vac
105 Vac to 125 Vac
Abnormal
95 Vac to 130 Vac
95 Vac to 130 Vac
Input Current
0.23 Amps typical at 115 Vac & at FL
0.23 Amps typical at 115 Vac & at FL
Output Voltage
7.5 Vdc regulated (Factory set)
7.5 Vdc regulated (Factory set)
Output Current
1.34 Amps continuous
1.50 Amps intermittent
1.34 Amps continuous
1.50 Amps intermittent
Regulation
3% for load, 1% for line and 3% for temperature
3% for load, 1% for line and 3% for temperature
Isolation
DC output is isolated from input and AC input is isolated from chassis GND.
DC output is isolated from input and AC input is isolated from chassis GND.
Ripple/Spike
71 Vrms maximum
71 Vrms maximum
Overload (OL)
Deliver 110% output power for 2 hours
Deliver 110% output power for 2 hours
Protection (OL)
Withstands without damage or degradation load exceeding 110% to an output short circuit. Unit delivers rated output power upon removal of the overload condition
Withstands without damage or degradation load exceeding 110% to an output short circuit. Unit delivers rated output power upon removal of the overload condition
Protection (SC)
Under a output short circuit condition, the input and output currents pump and the currents are limited to safe values.
Under a output short circuit condition, the input and output currents pump and the currents are limited to safe values.
Altitude
55,000FT
55,000FT
Temperature
-40° C to +71° C
-40° C to +71° C
Connector
Unit mates with MS3126F14-5S
Unit mates with MS3126F14-5S
Finish
Gold iridite per MIL-C-5541 & black paint
Gold iridite per MIL-C-5541 & black paint
Weight
.50 LBS (227 grams)
.50 LBS (227 grams)
Size
1.56 H x 2.00 W x 5.00 L inches
39.6 H x 50.8 W x 127.0 L mm
Less protrusion of connector and screw heads
Additional information
| Brand | KGS Electronics |
|---|
