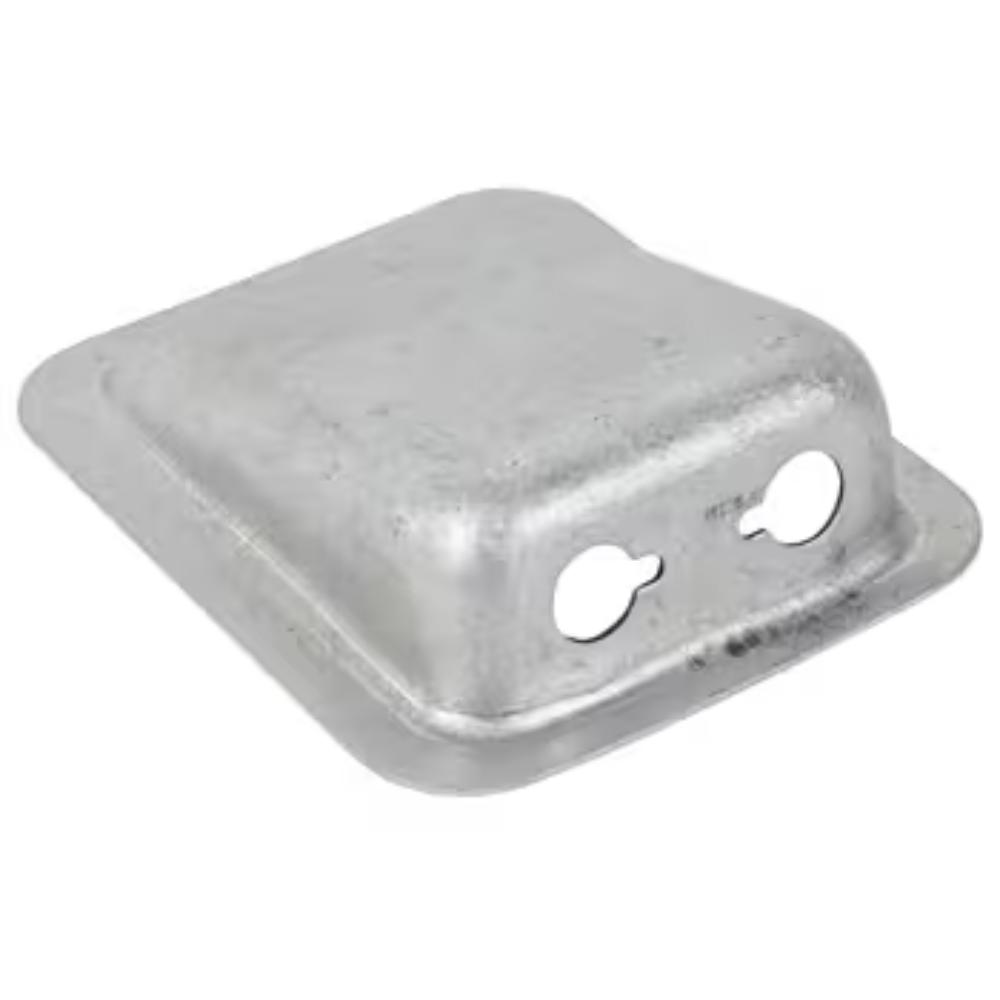

MIC and PHONE JACK HOUSING/Aluminum, no paint. Height: 1 Outside length: 3 1/2 Inside length: 3 Outside width: 3 Inside width: 2 1/8
$28.29
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Forbes |
