RAM® Double Ball Mount with Two Round Plates – C Size Medium
$64.49

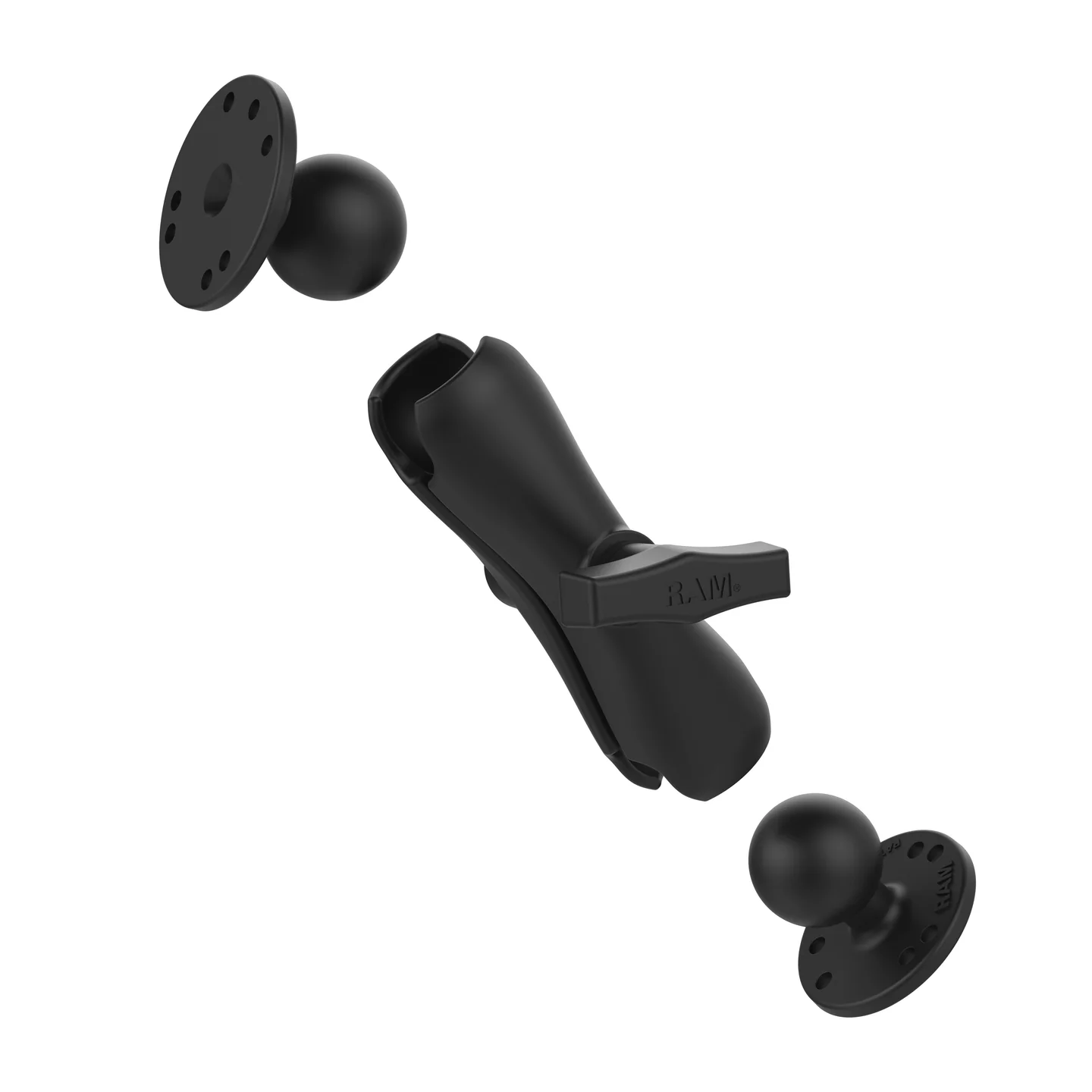

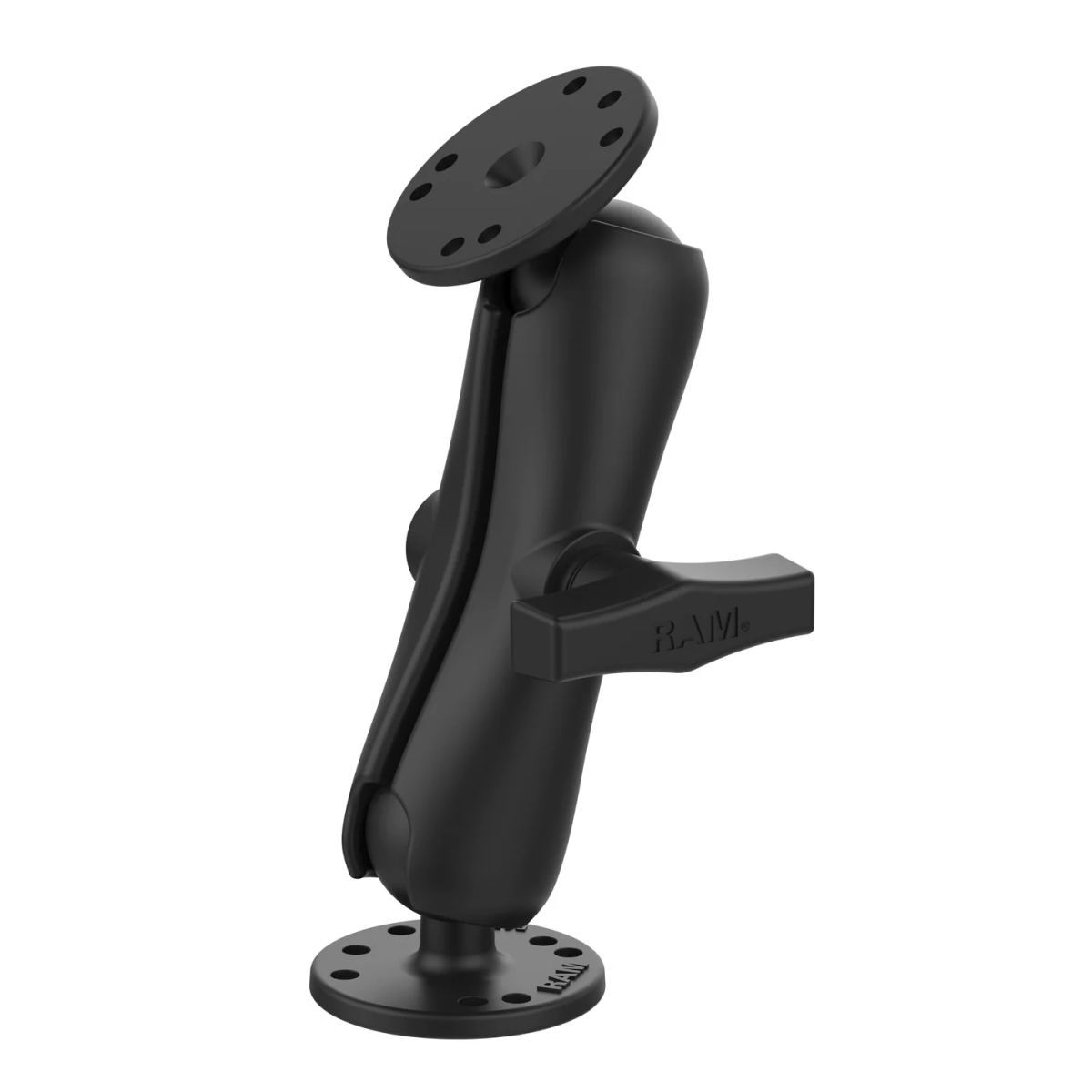

The RAM-101U consists of a 6 inch C size 1.5″ double socket arm and two 2.5″ diameter round ball bases that contain the universal AMPS hole pattern. The ball and socket system provides shock and vibration damping, and allows for near-infinite adjustability to achieve an ideal viewing and operating angle of your device.
Features
- Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders

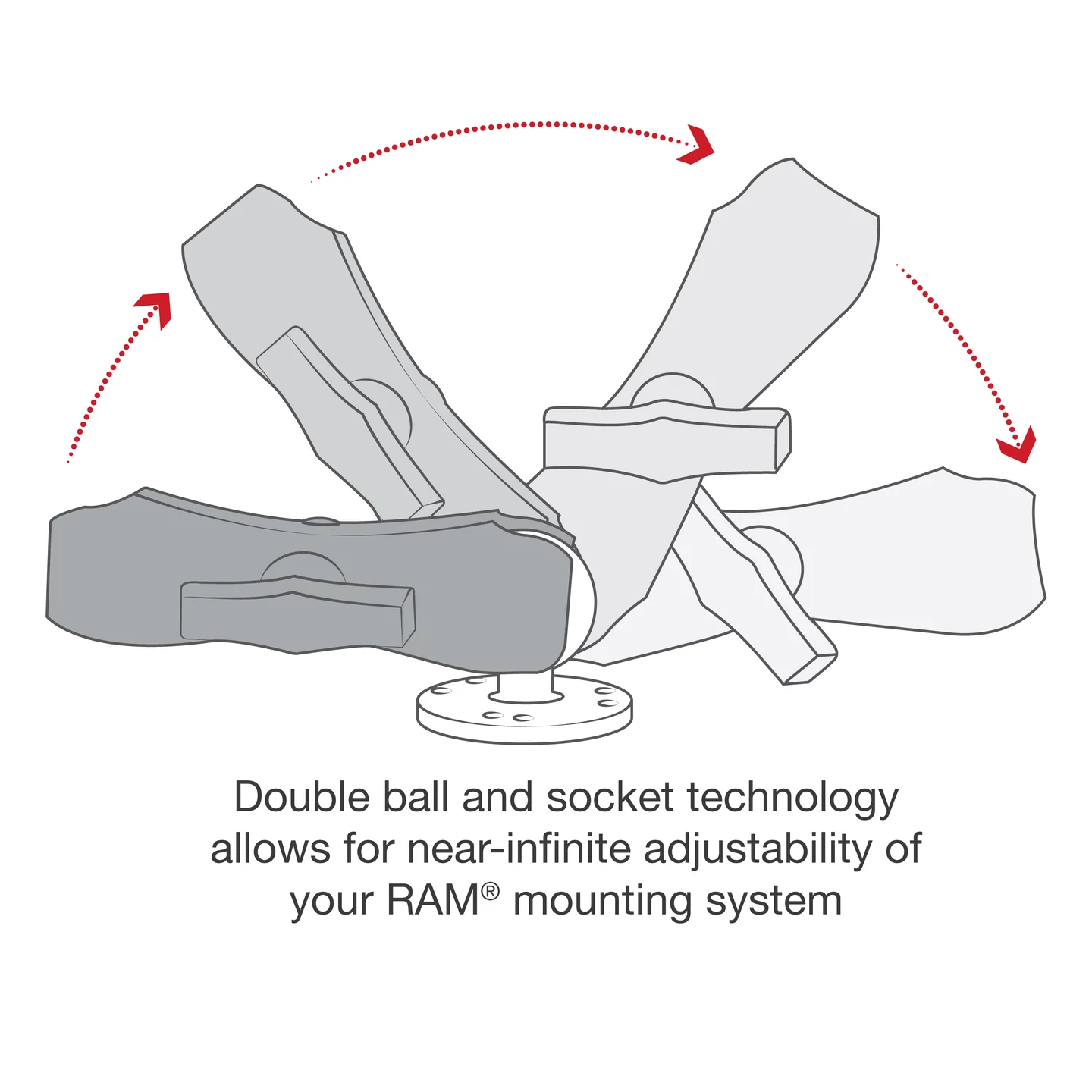

- Includes two round ball bases and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications

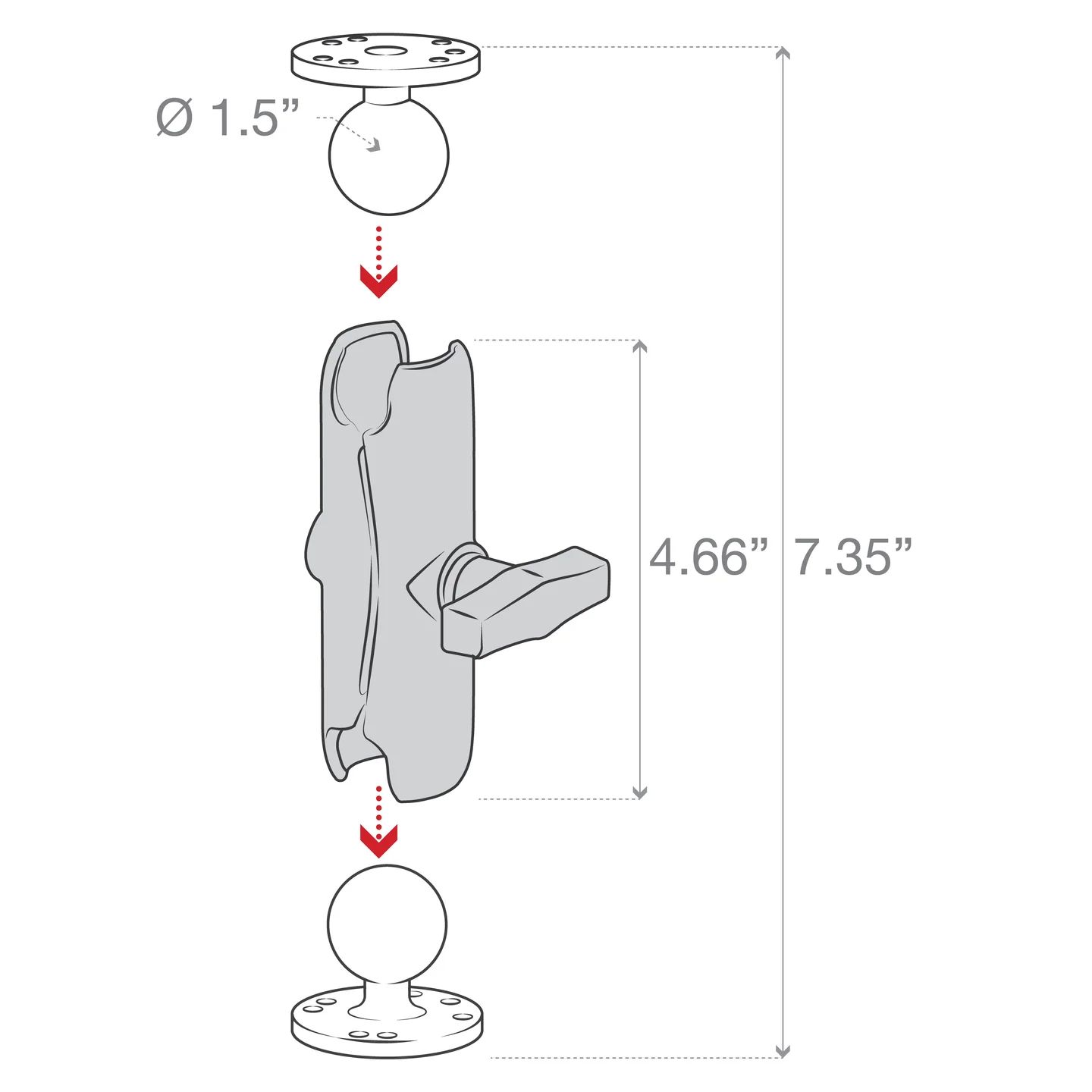

Product dimensions:
Overall Height: 7.35″
Socket to socket length:
4.66″
Hole pattern:
4-Hole AMPS: 1.181″ x 1.496″
3-Hole 120-Degree: 1.812″ Diameter
Plate size:
2.5″ Diameter
Ball size:
C Size (1.5″)
Weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
Materials:
Marine-grade aluminum
Packaging type:
Poly Bag
Weight:
1.15 lb
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
