RAM® Double Socket Arm with Round Ball Plate – C Size Medium
$64.49

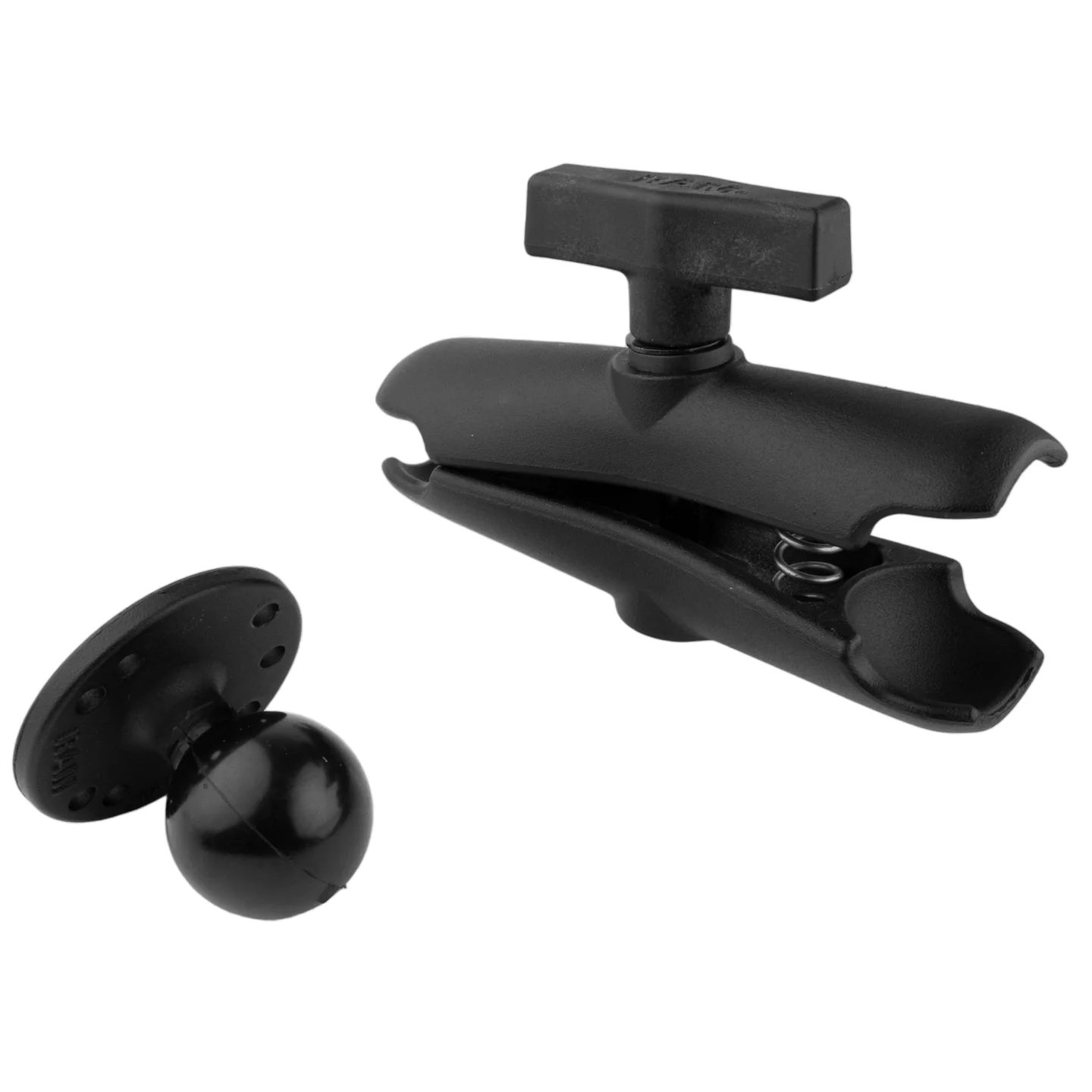

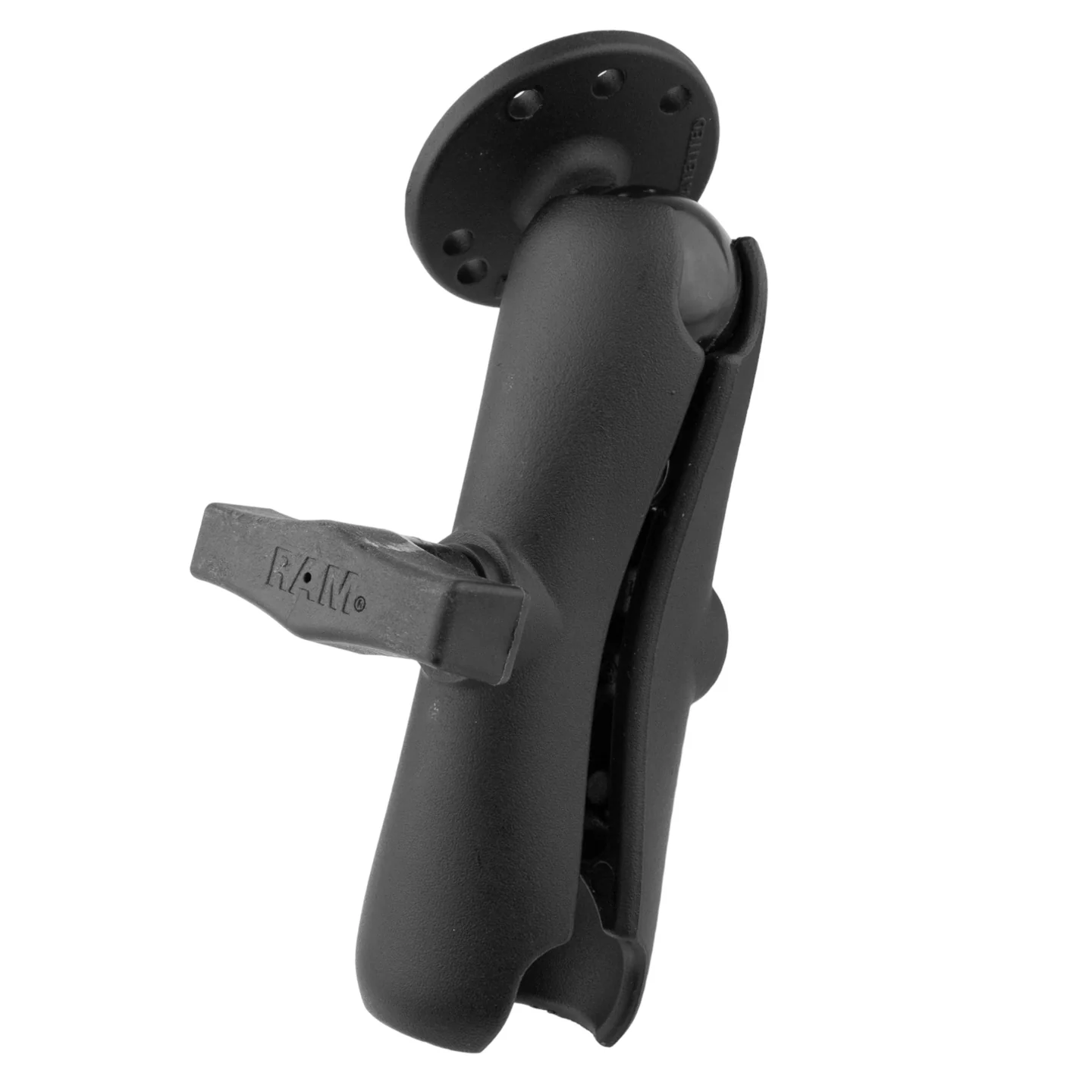

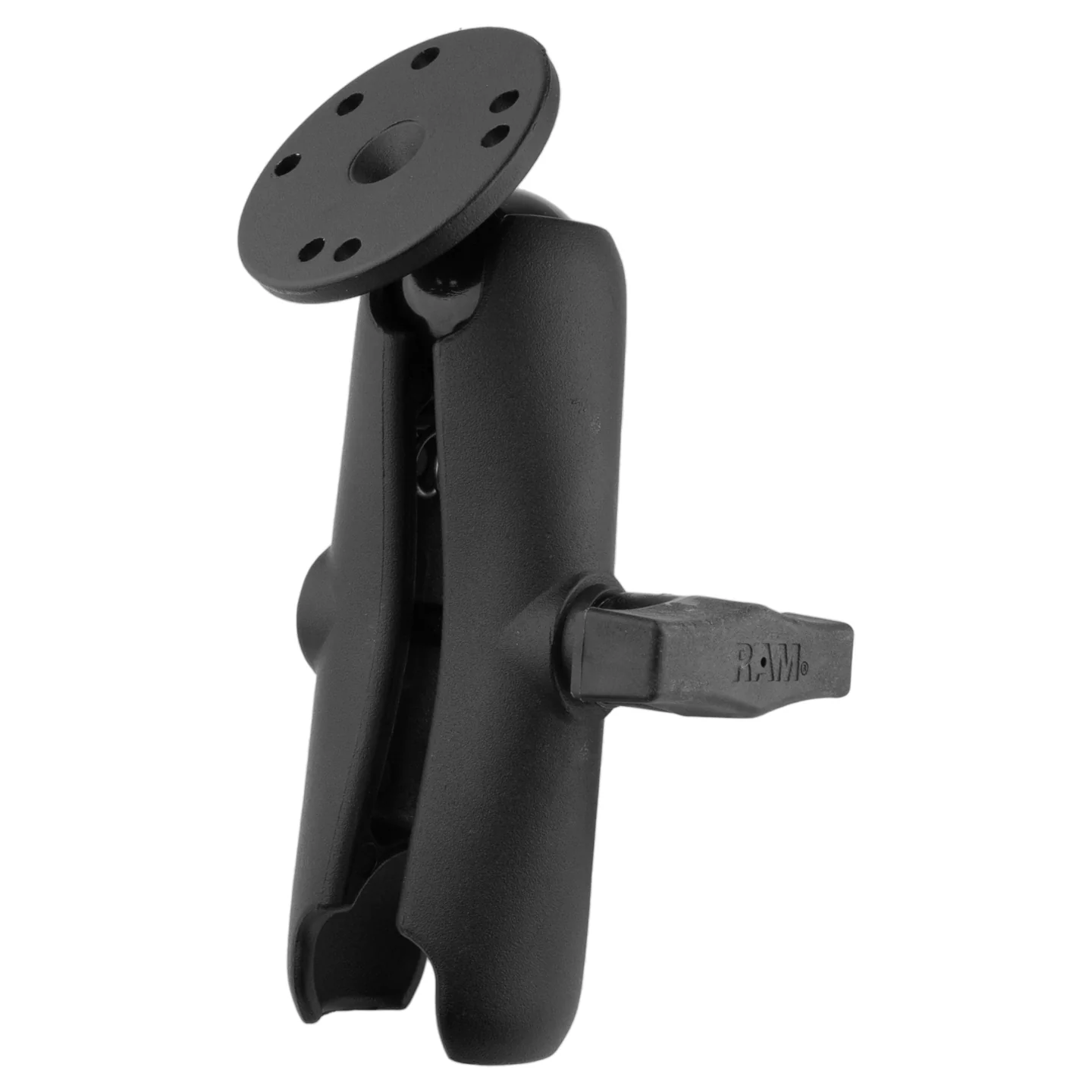

The RAM-103U consists of the 1.5″ diameter ball and socket system with one open socket end. This mount is designed to be used with any of the RAM mounting bases or cradles with a 1.5″ diameter rubber ball. The round base has a 1.5″ diameter rubber ball connected at right angles to a 2.5″ diameter base. The plate has pre-drilled holes in the base, including the universal AMPS hole pattern.
Features
- 2.5″ round plate connects to RAM® device holders containing the universal AMPS hole pattern
- Includes C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications
Socket to socket length:
4.66″
Hole pattern:
4-Hole AMPS: 1.181″ x 1.496″
3-Hole 120-Degree: 1.812″ Diameter
Plate size:
2.5″ Diameter
Ball size:
C Size (1.5″)
Weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
Materials:
Marine-grade aluminum
Packaging type:
Poly Bag
Weight:
0.93 lb
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
