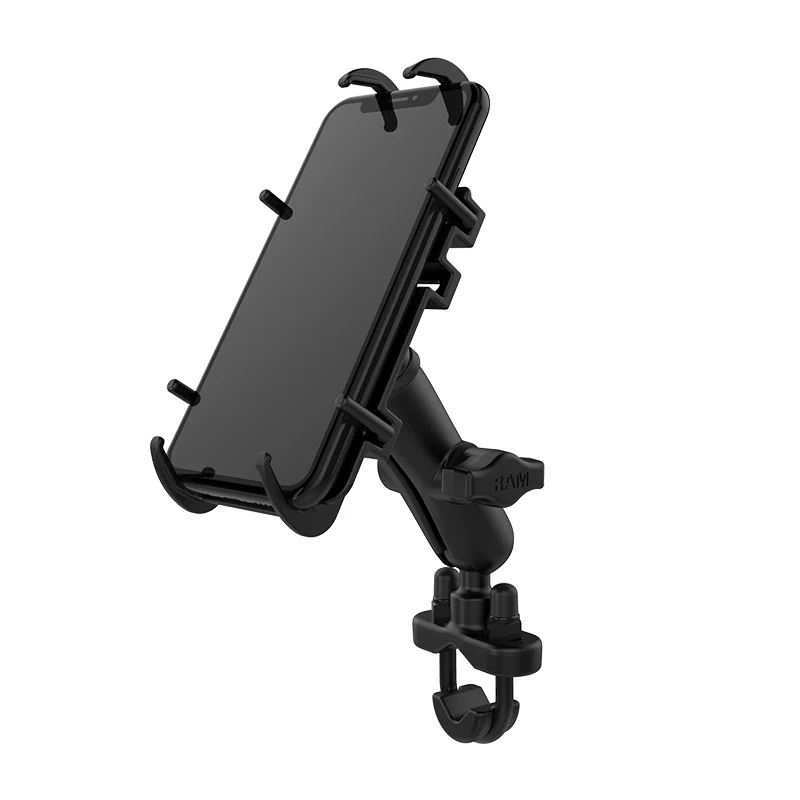

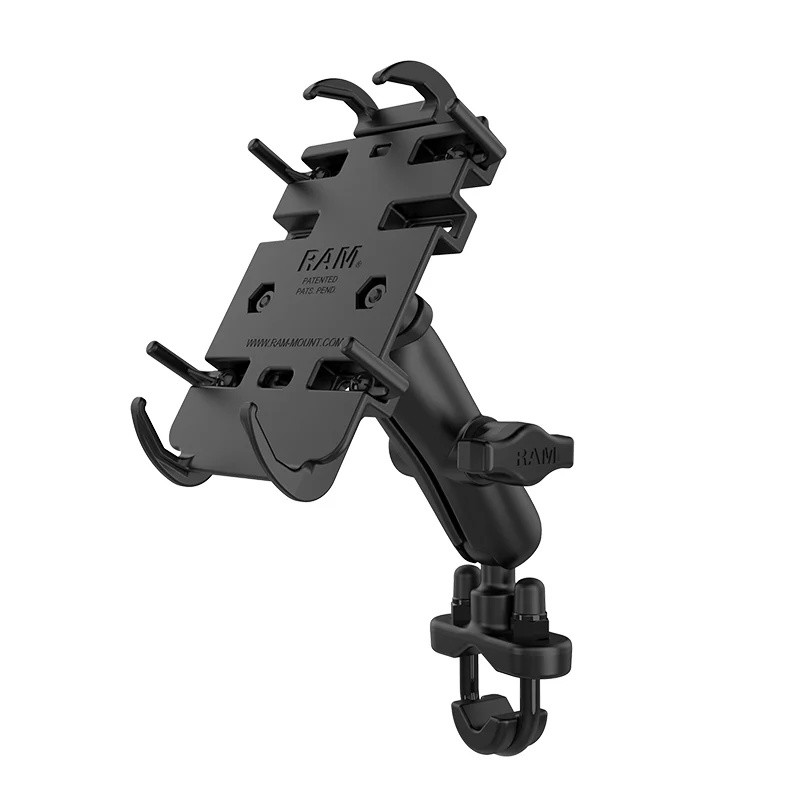

RAM® Quick-Grip™ Phone Mount with Handlebar U-Bolt Base – Medium
$68.99

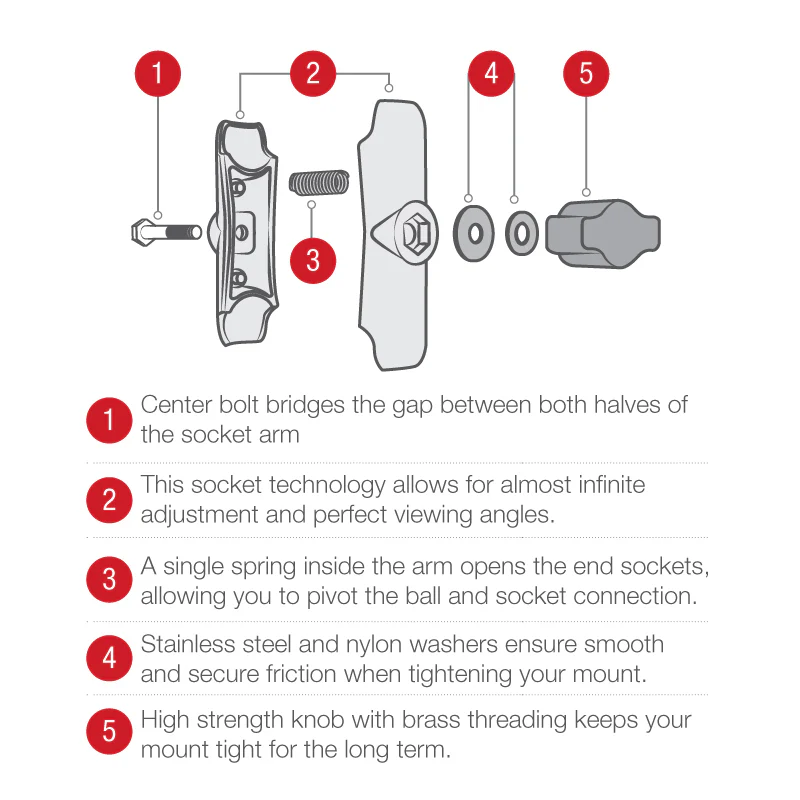

The RAM Quick-Grip™ Handlebar Mount consists of a zinc coated u-bolt base, double socket arm and spring loaded cradle for supporting most phones. Included in this package is hardware that will accommodate rails from 0.50″ to 1.25″ in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5″. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Features

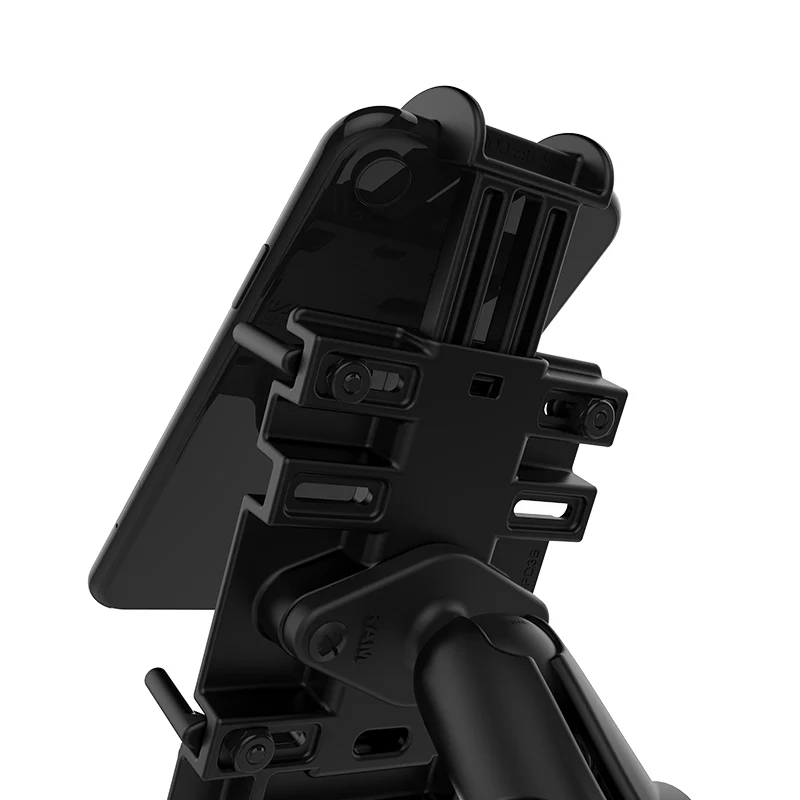

- Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of phones and other devices; easily insert and remove your phone with one hand
- Includes U-bolt base that accommodates rails from .5″ to 1.25″ in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications
Hardware included:
Assembly Hardware
(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
(2) 1/4″-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

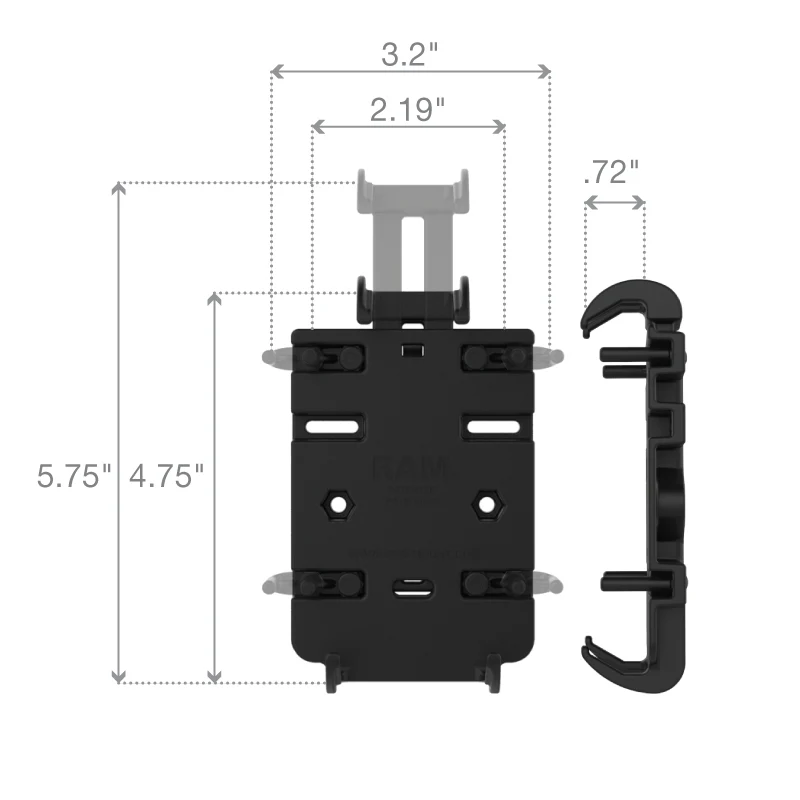

Holder dimensions:
Height Range: 4.75″ – 5.75″
Width Range: 2.19″ – 3.25″
Max Depth: .72″
Clamp range:
.5″ – 1.25″ diameter
Socket to socket length:
3″
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
High strength composite
Packaging type:
Poly Bag
Weight:
0.85 lb
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
