RAM® U-Bolt Double Ball Mount with Action Camera Adapter – Medium
$49.99

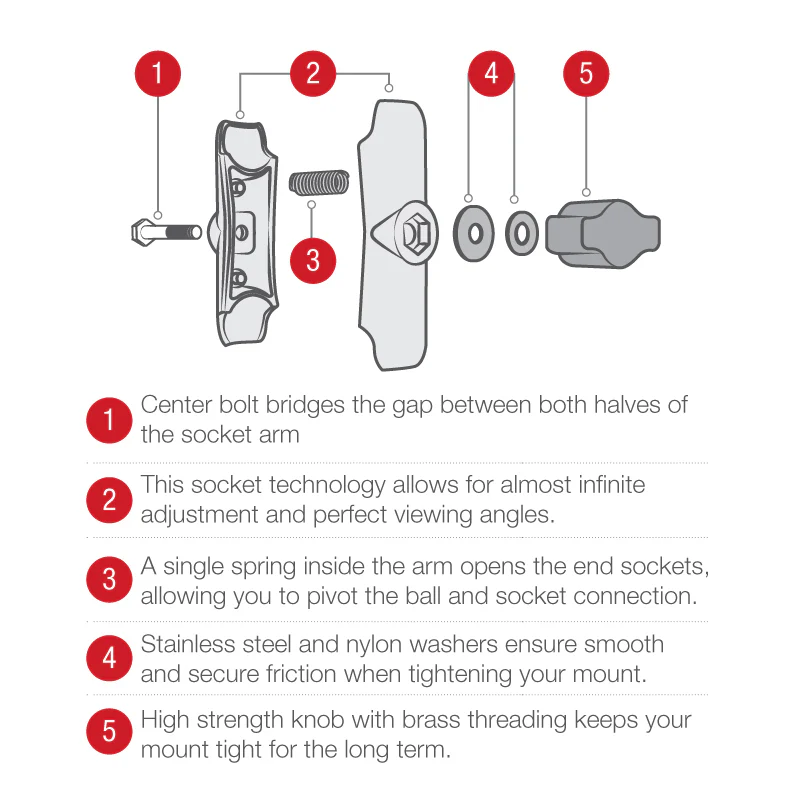

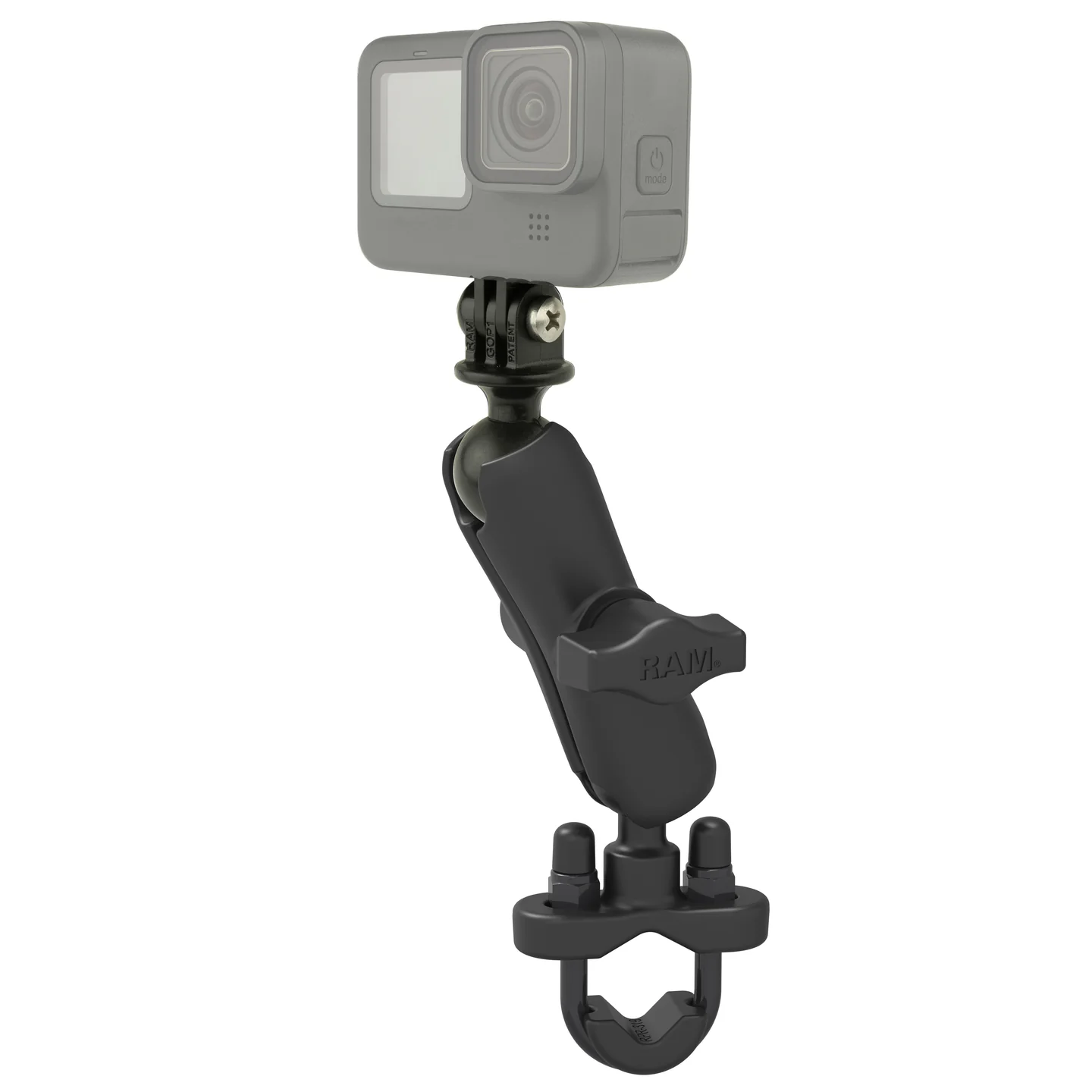

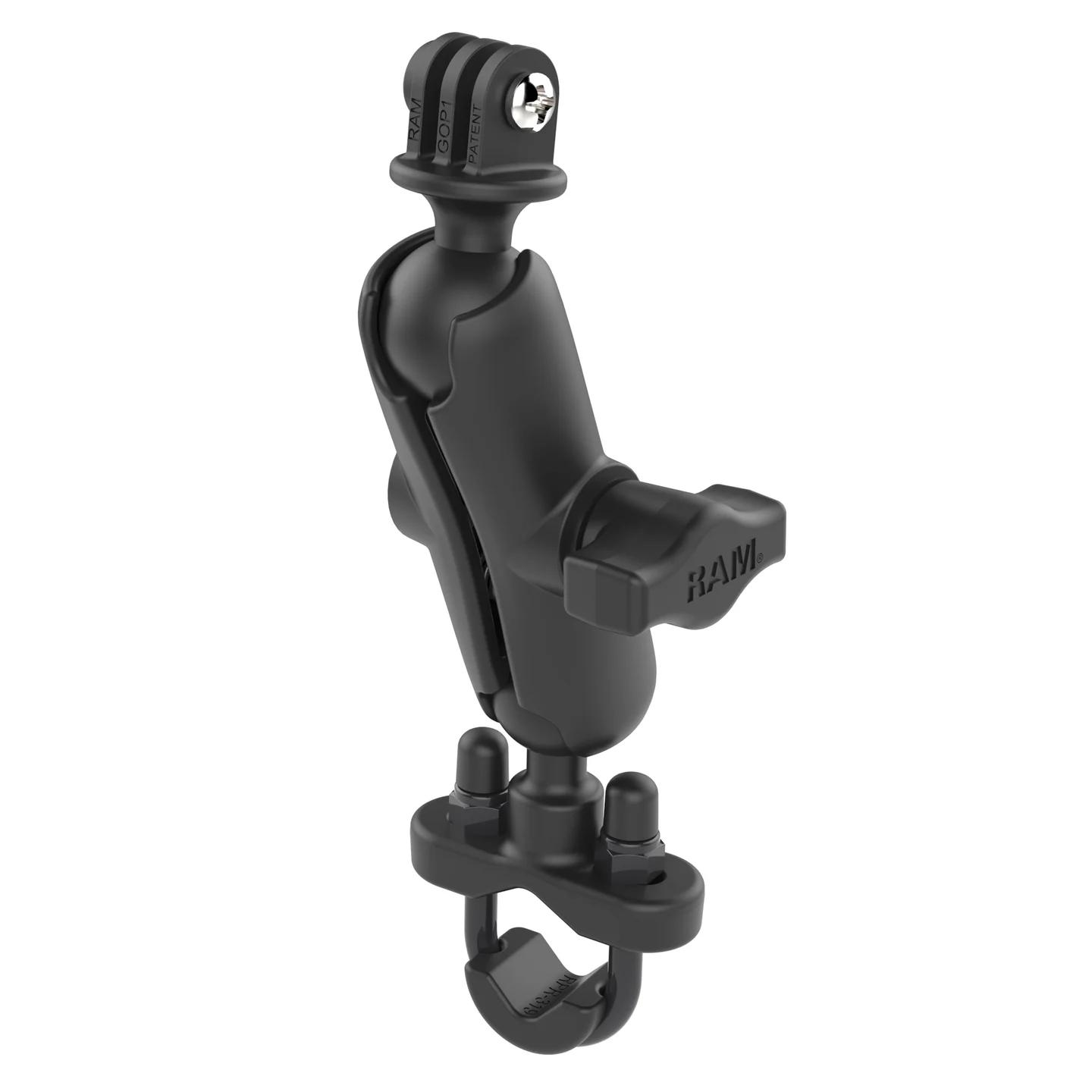

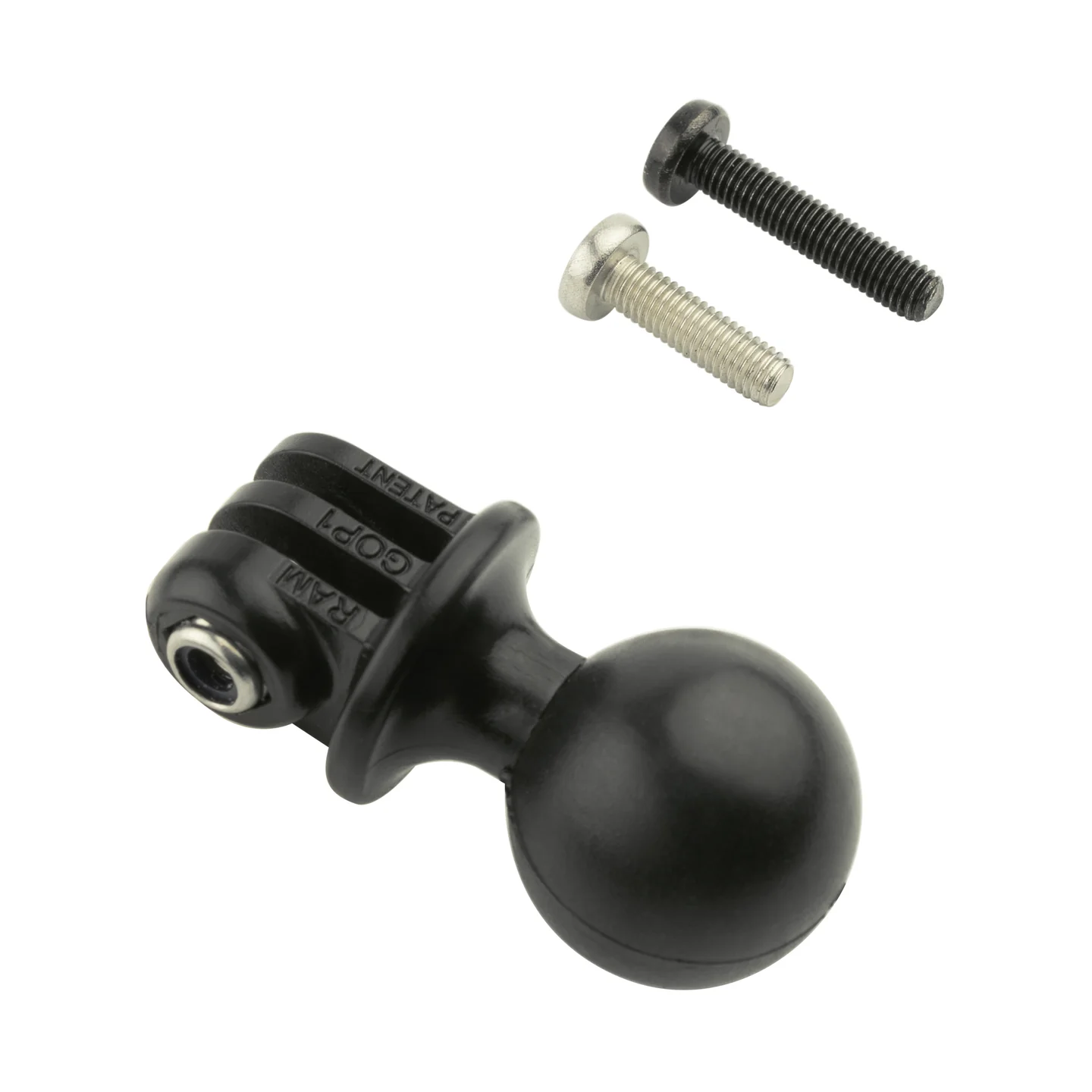

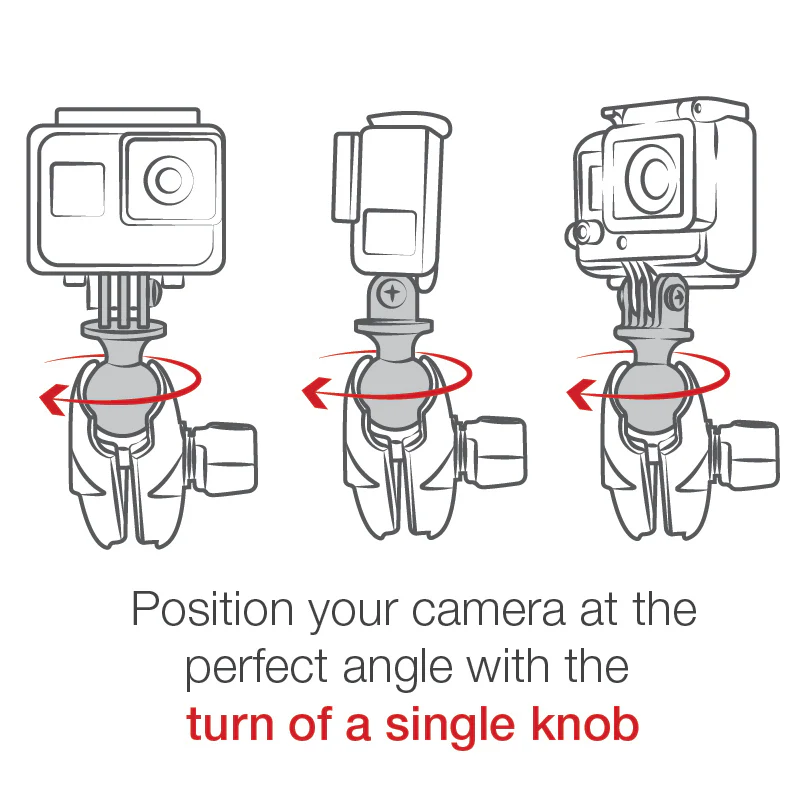

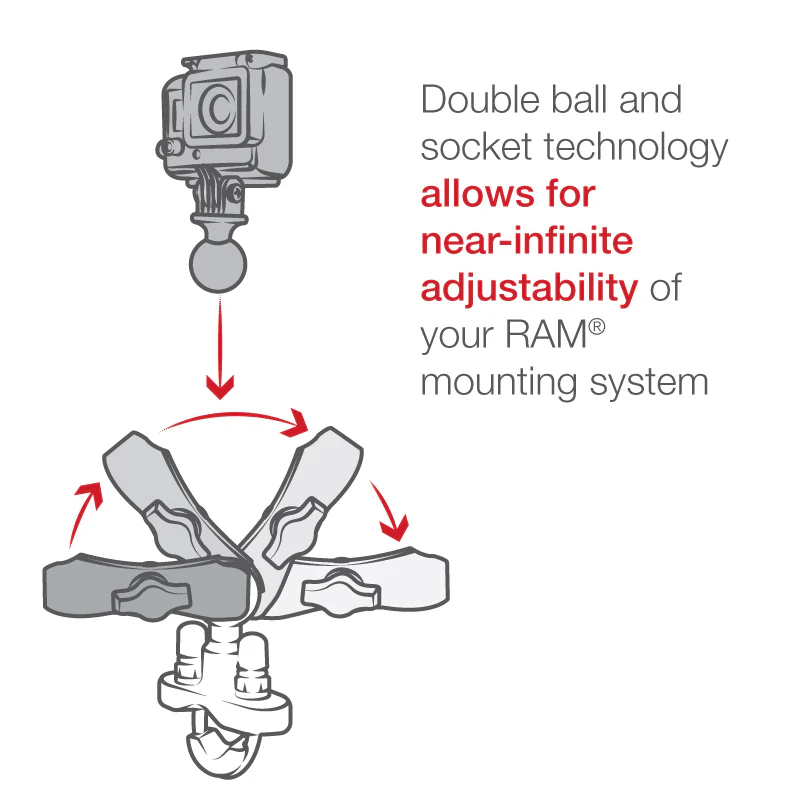

The RAM-B-149Z-GOP1U consists of a zinc coated u-bolt base, standard size double socket arm and 1″ diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50″ to 1.25″ in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5″. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.
Specifications
Hardware included:
Assembly Hardware
(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
(2) 1/4″-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
Clamp range:
.5″ – 1.25″ diameter
Socket to socket length:
3″
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
High strength composite
Packaging type:
Poly Bag
Weight:
0.62 lb
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | RAM Mounts |
