Series 9100 & 9900 Wireless Belt Station Charging Station | Four-Bay
$667.80

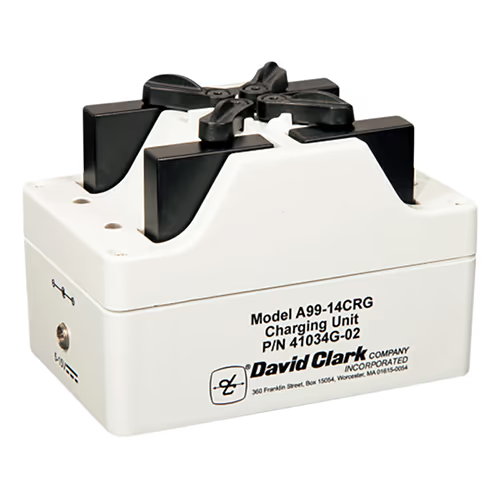

The digital intercom system Model A99-14CRG is a next generation four-bay battery charger that is specifically designed to charge 3.7V li-polymer batteries for David Clark’s 9100 & 9900 series wireless belt stations. Each battery charges independently of the others. The batteries charge status is indicated by a multi-colored LED conveniently located next to its respective battery bay. This unit is capable of charging batteries in as little as three to four hours. Power cable options are available in a variety AC and DC configurations.
Features
- Charges up to four Li-polymer 3.7V batteries for all series 9900 wireless battery powered modules
- built-in NFPA compliant battery holders — approved for fire & rescue
- DC input range from 5-volts to 15-volts
- Individual multi-color LED indicators for each battery
- Li-Polymer batteries include internal thermistor for independent monitoring
- Three to four hour charge cycle provides full charge to depleted batteries
- Power supply cord kits available (sold separately) provides 110VAC, 230VAC, 12VDC, and 24VDC)
- Includes permeant and portable mounting options
- Rugged design for reliable service
- Low-profile, space-saving enclosure allows for flexible installation options
Specifications
Weight:
10.4 oz (295 g)
Dimensions:
4.75 x 3.25 x 3.5 in
Power Connections:
DC power jack mates with C99-14xxx series power cord kits
Input Voltage:
5VDC — 15VDC
Input Current:
5A, max.
Output Voltage:
4.2 VDC
Output Current:
850 mA per battery (max.), 4A total (max.)
Battery Compatibility:
Li-Polymer 3.7V, 2,260 mAh (P/N 40688G-90)
Mounting Method:
surface or desktop mount kits (both included)
Enclosure Material:
Polycarbonate (enclosure), ABS (battery holders)
Temperature:
32°F to 100°F 0°C to 38°C
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | David Clark Company |
