SPC-10( ) Series
$3,920.00
Contact Cost Aero at 855-500-3044 for pricing
27
Items sold in last 13 days
7
People watching this product now!
Description
TSO’D Â 400HZ STATIC INVERTERS
100 TO 350 VA

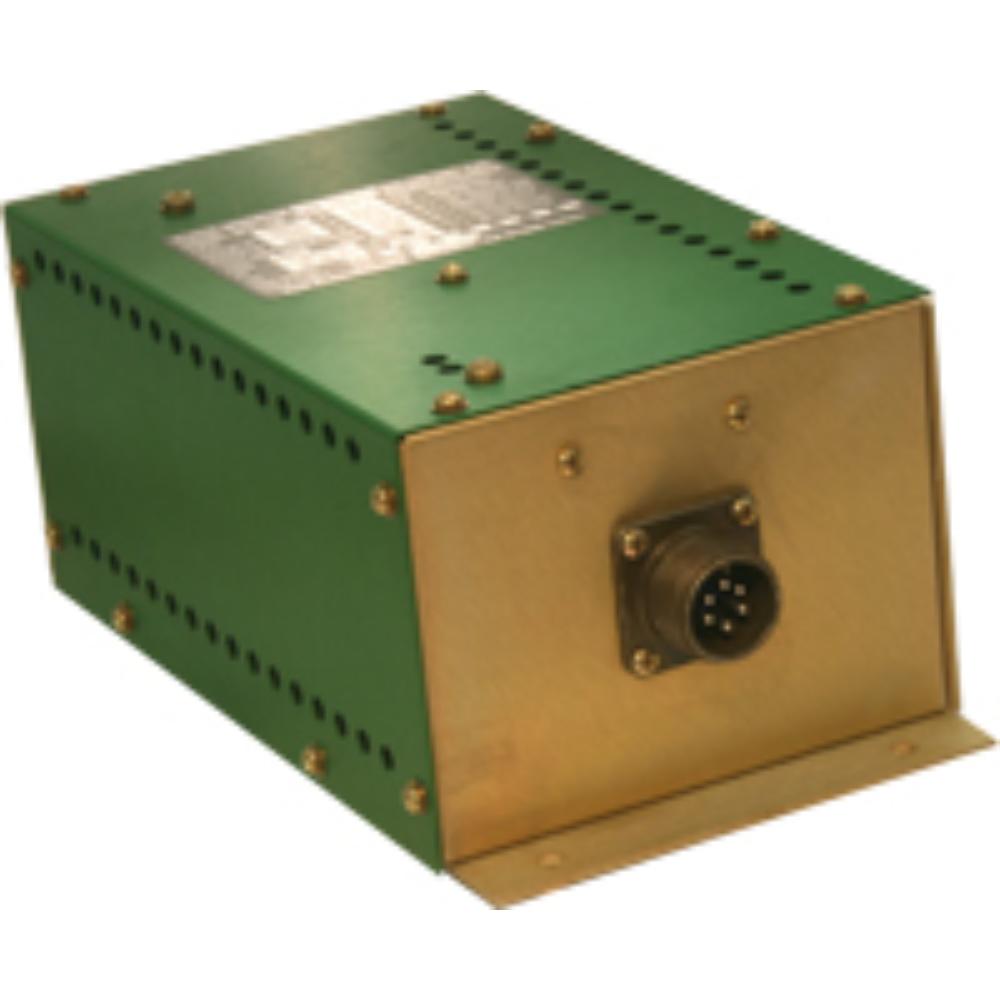

The SPC-10( ) Series static inverter utilizes solid state circuitry to convert 28 VDC to 115 VAC, 400 Hz sine wave power. Design features include pulse-width modulated square to sine wave power conversion permitting light weight and reliable operation.
The SPC-10( ) Series are capable of delivering an overload of 150% of rated current for a duration not less than five minutes under all environmental conditions.
Specifications
| Model: |
|
|||
| Input Voltage(VDC): Normal: Abnormal: |
|
|||
| Input Current (ADC): @ 28 VDC IN |
|
|||
| Output Power (Total): 115 VAC / 26 VAC |
|
|||
| Efficiency (%) : |
|
|||
| Weight: |
|
|||
| Output Voltage: | 115 VAC and / or 26 VAC | |||
| Phase/Waveform: | Single / Sine Wave | |||
| Frequency: | 400 Hz ± 1% | |||
| Amplitude Distortion: | Less than 7% (3% Typ.) | |||
| Power Factor: | .8 to -.95 | |||
| Input Overvoltage: | Operate up to 37 VDC input while supplying full rated VA output  power. Output voltage under this condition is 115 VAC +5%, 7%. | |||
| Input Transient Protection: | Withstands transients of 88 volts 1 mSec on the 28 VDC input line. | |||
| Overload & Short Circuit Protection: | Withstands without damage or degradation load exceeding 150% of rated output to an output dead short.Inverter delivers rated output on removal of above conditions. | |||
| Altitude: | 55,000 ft. | |||
| Temperature: | -65°F to +160°F (-55°C to +71°C) | |||
| Humidity: | Tested to greater than 95% for 10 days, temperature was cycled between 75°F to 160°F | |||
| Environmental: | Qualified to meet RTCA paper D0-160 Env. Cat. D2BR– | |||
| PINS | SPC-10( ) | SPC-10(D) | SPC-10(F) | SPC-10(H) | SPC-10(N) |
| A | 28 VDC INPUT | 28 VDC INPUT | REMOTE ON/OFF | REMOTE ON/OFF | FAULT MONITOR |
| B | DC GROUND | 115 VAC OUTPUT | 115 VAC OUTPUT | 115 VAC OUTPUT | 28 VDC INPUT |
| C | AC RETURN | AC RETURN | AC RETURN | AC RETURN | PHASE LOCK |
| D | 115 VAC OUTPUT | DC GROUND | ON/OFF RETURN | ON/OFF RETURN | DC GROUND |
| E | NO CONNECTION | REMOTE ON/OFF | NO CONNECTION | FAULT MONITOR | REMOTE ON/OFF |
| F | 26 VAC OUTPUT | FAULT MONITOR | PHASE LOCK | PHASE LOCK | AC RETURN |
| G | 26 VAC OUTPUT | 26 VAC OUTPUT | 26 VAC OUTPUT | 115 VAC OUTPUT | |
| H | 28 VDC INPUT | 28 VDC INPUT | 26 VAC OUTPUT | ||
| I | DC GROUND | DC GROUND | |||
| J | ON/OFF RETURN | ||||
| MATE | MS3106B14S-6S | MS3106B18-9S | MS3106B20-16S | MS3106B20-16S | MS3476L14-9S |
Additional information
| Brand | KGS Electronics |
|---|---|
| Model | SPC-10, SPC-10(F), SPC-10(N), SPC-10(H) |
