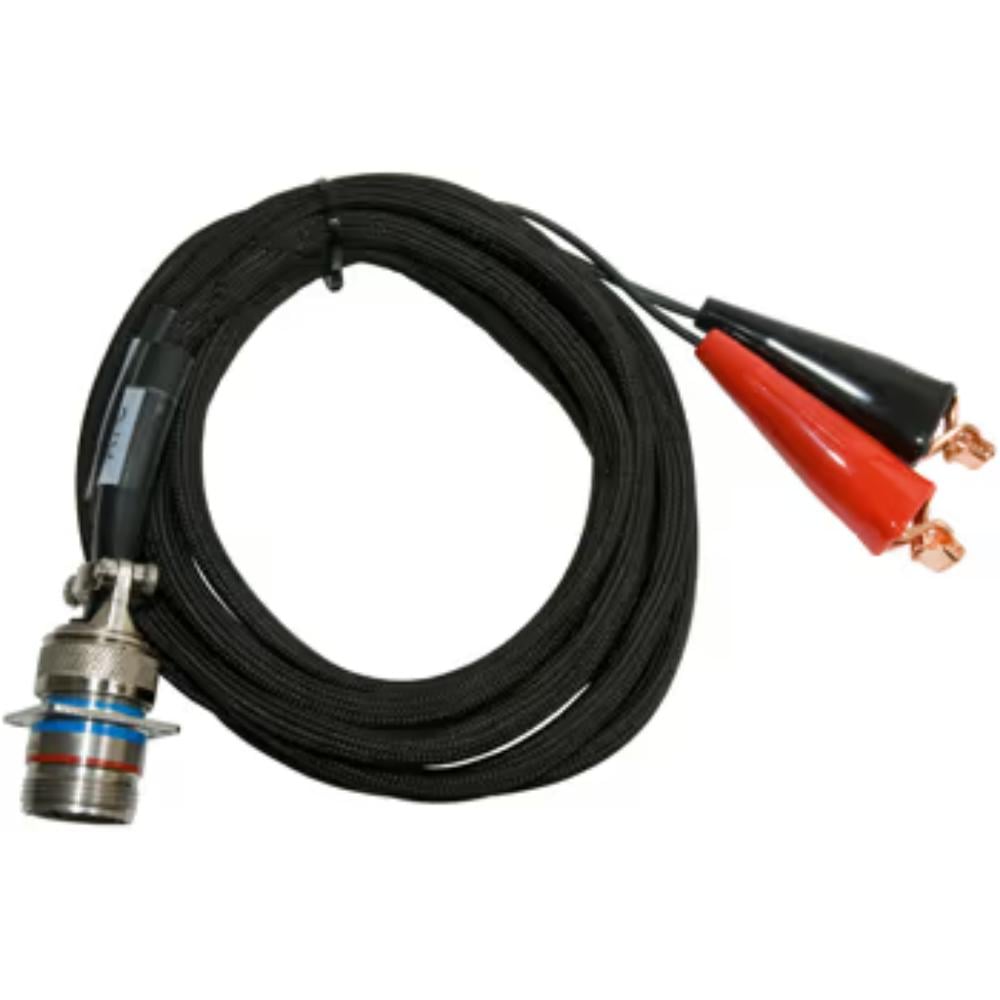

TT1000A Adapter Cable
$2,618.00
Adapter cable for the TT1000A Digital Turbine Temperature Test Unit. This adapter cable is used for the leak test on the fuel return valve.
Features
- Compatible with the TT-1000A test set
- 12 inch length
| Brand | Barfield |
|---|
