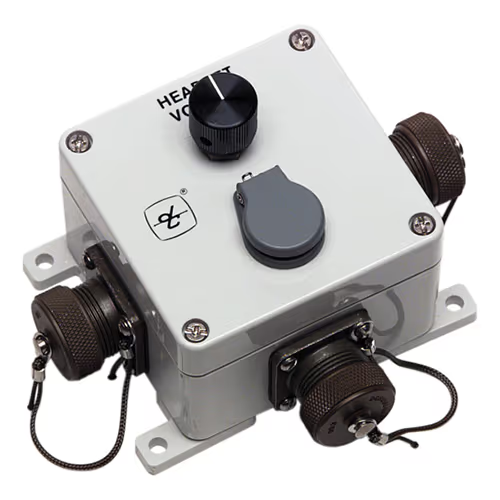

U3802 Simple Headset Intercom Station
$482.63
The U3802 is a simple headset station, used to expand the intercom system beyond the Master Station. It is designed for use at positions where a path for “daisy-chaining” to other intercom modules is required. It includes one headset jack and headset listen level control, as well as three system input/output connectors for running C38-xx Jumper Cord to and from other intercom modules. The U3802 is used for a headset position that does not require radio transmit capability.
Features
- Provides crisp, clear communication in demanding environments
- Hands-free, full-duplex, intercom communications
- Compatible with all 3000 Series Headsets
- Accommodates one headset user (should be installed where radio transmit function is not required)
- Headset jack with weather-protected, sealed spring cap when not in use
- Headset listen level control for fine-tuning headset volume
- 3 each System Input/Output connectors, MS-type with protective cap, for “daisy-chaining” to other intercom modules
- Surface mount installation kit included
- Designed to be installed for single user not requiring radio transmit capability
- Durable, weather-resistant enclosure
- Quality materials, components and craftsmanship
- Rugged and reliable
Specifications
Weight:
11.6 oz (329 g)
Dimensions:
5.375 x 4.25 x 3 in
Power Requirements:
12 or 24 VDC
Enclosure:
Heavy-gauge polycarbonate (-80ºF to 212ºF)
Volume Control:
Headset listen level control
Headset Interface:
12B Jack, 0.25 in. (w/ sealed spring lid)
System Connections:
3 each, via C38-xx Jumper Cord
Installation:
Surface mount (mounting kit included)
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | David Clark Company |
