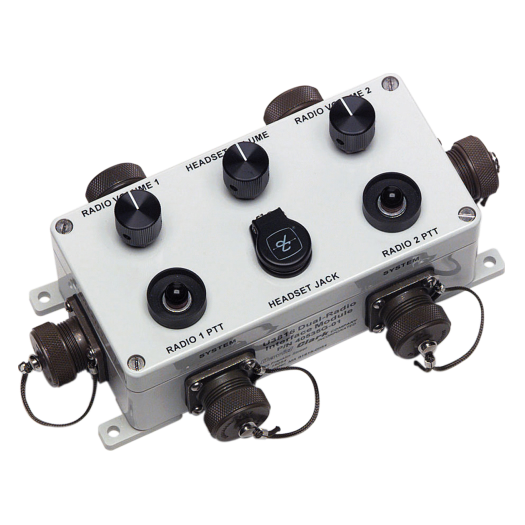

U3816 Dual Radio Interface Module
$874.45
The U3816 provides isolated radio transmit capability over two separate radios for one user, and radio receive for the entire Series 3800 Intercom System for both radios. It also provides a path to “daisy-chain” to another intercom module, further expanding the system beyond the Master Station. It includes one headset jack and listen level control, two individual radio PTT switches and radio receive volume controls, two system input/output connectors, two radio input connectors and two optional remote PTT connectors for C3023 Belt Stations or 40071G-04 Footswitches.
Features
- Provides crisp, clear communication in demanding environments
- Hands-free, full-duplex intercom communications
- Compatible with all 3000 Series Headsets
- Provides radio interface for two radios
- One each headset jack and listen level control
- Two individual radio PTT switches
- Two radio input connectors, MS-type (6-socket)
- Two system input/output connectors, MS-type (4-socket)
- Two remote PTT connectors, MS-type (5-socket), works with C3023 Belt Stations or 40071G-04 Footswitches
- Surface mount installation kit included
- Durable, weather-resistant enclosure
- Quality materials, components and craftsmanship
- Rugged and reliable
Specifications
Weight:
25.4 oz (720 g)
Dimensions:
6.75 x 5.25 x 2.375 in
Power Requirements:
12 or 24 VDC (via U3800)
Enclosure:
Heavy-gauge polycarbonate (-80 °F to 212 °F)
Radio Input Connection:
2 each, via C3821 Radio Interface Cords
System Input Connection:
2 each, via C38-xx Jumper Cords
Remote PTT Connection:
2 each, via C3023 Belt Stations or 40071G-04 Footswitches
Headset Interface:
12B Jack, 0.25 in (w/ sealed spring lid)
Volume Control:
1 each Headset listen level control
Radio Transmit:
2 each momentary PTT switches
Installation:
Surface mount (mounting kit included)
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | David Clark Company |
