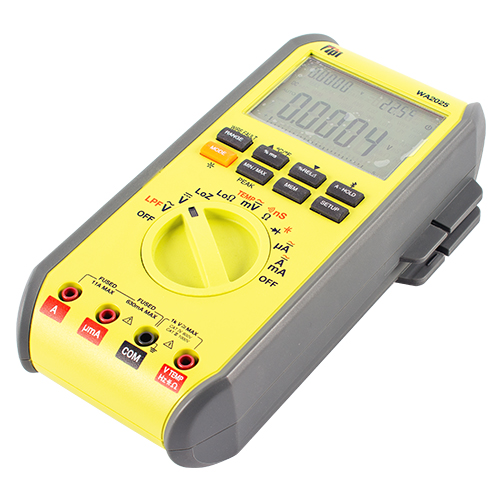

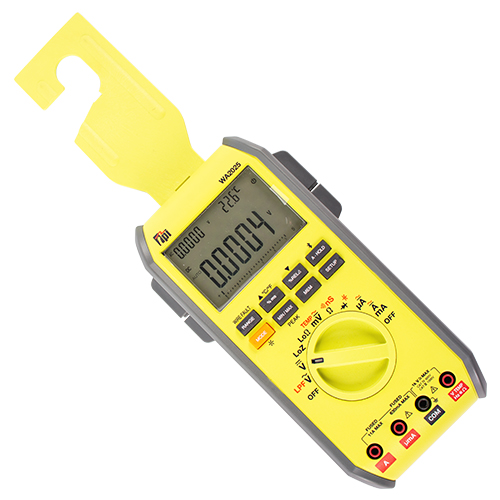

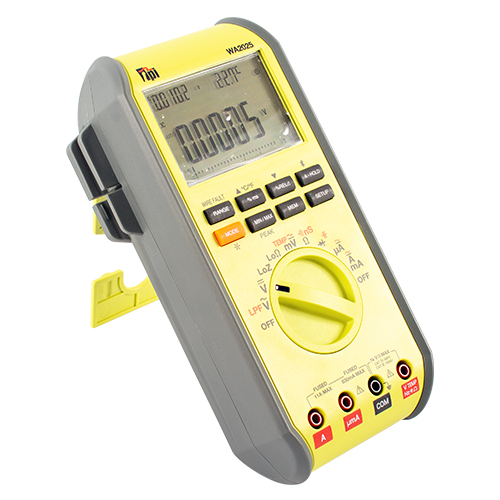

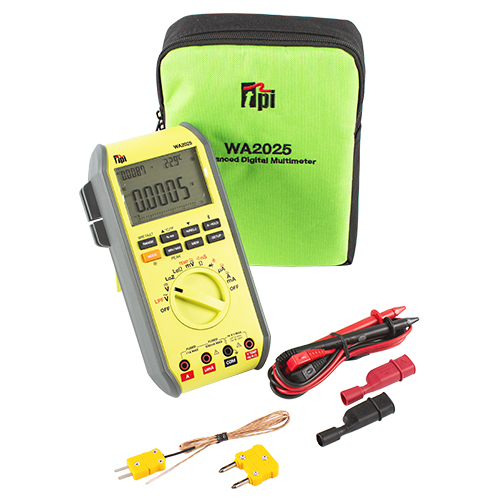

WA2025 Advanced Digital Multimeter w/ Wire Fault Function & Bluetooth

The TPI WA2025 handheld multimeter includes a Wire Fault Test that finds short circuits in wire runs and displays the distance to the short. The low 50 Ω resistance range, supported by a stable 20 VDC 10 mA output, ensures stable measurements, while the Low Z voltage mode reduces ghost readings in complex electrical environments. The WA2025 features Bluetooth 5.0 connectivity for remote viewing and report creation, and a rugged IP51 rated housing.

Features

• Wire Fault Test for finding short circuits in wire runs
• Displays the distance to the short
• Low 50 Ω Resistance Range with 20 VDC 10 mA output for stability
• Low Z Voltage Range
• Bluetooth 5.0 output for remote viewing and report creation
• Rugged IP51 rated housing and 3-year limited warranty
• CAT IV 600V / CAT III 1000V

Specifications

• Maximum Voltage: 1000 V
• Maximum Current: 10 A
• Resistance: 500 MΩ
• Low Resistance Range: 50 Ω with 20 VDC @ 10mA output
• Frequency: 1 MHz
• Capacitance: 10 mF
• Temperature: -328ºF to 2462ºF
• True RMS: Yes
• Decibels: Yes
• Diode Test: Yes
• Conductance: Yes
• Duty Cycle: Yes
• Pulse Width: Yes
• Low Z Voltage Function: Yes
• Min/Max Record: Yes
• Relative Mode: Yes
• Display Hold/Auto Hold: Yes
• Sleep Mode/Auto Off: Yes
• Bluetooth: 5.0 Output
• Time Stamp Logging: Yes
• Frequency Check in Volt Mode: Yes
• Low Pass Filter: Yes
• Low Impedance Voltage Measurement: Yes
• Trend Capture: Yes
• Separate Fuse/Battery Access: Yes
• Magnets and Hanger/Tilt Stand: Yes
