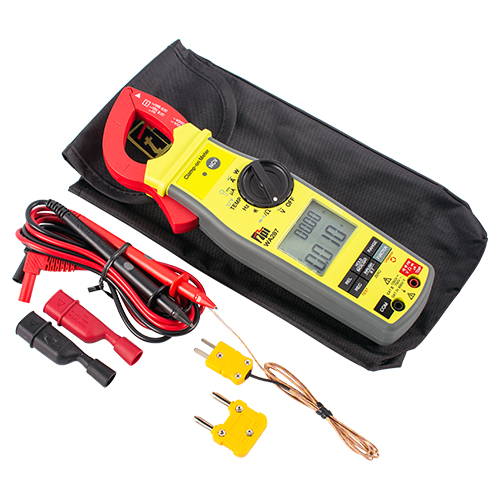

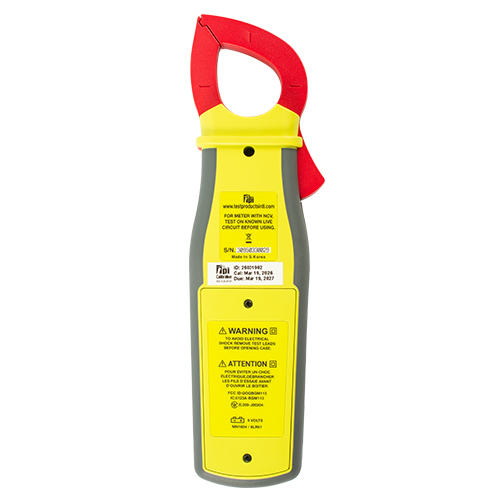

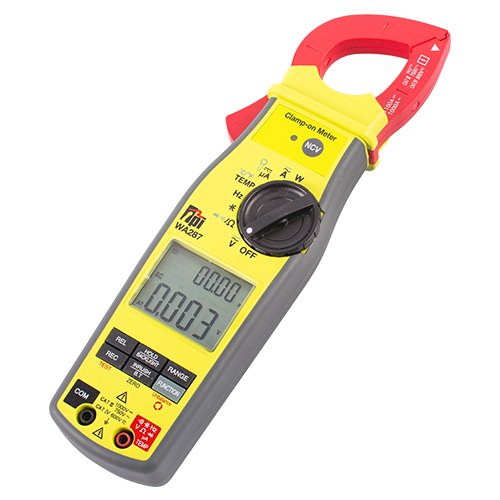

WA287 Digital Clamp Multimeter with Bluetooth

Features

• True RMS for accurate voltage and amperage measurements
• In-Rush Current measurement to capture motor start up current
• Non-Contact Voltage detection through the jaw
• Measure Active Power, Reactive Power, Apparent Power, and DC Power
• AC Voltage and AC Amperage Unbalance Test
• Phase Rotation
• Bluetooth LE communication
• Use with TPI View app to display live readings, save measurements, create and email reports with GPS tagged date and time
• CATIV 600V rated for safety

Specifications

• Weight: 1.1 lb (499 g)
• Dimensions: 9.9 x 2.5 x 1.4 in (252 x 64 x 36 mm)
• Display: 6000 count dual display LCD with backlight
• Operating Temperature: 32ºF to 113ºF (0ºC to 40ºC)
• Storage Temperature: -4ºF to 140ºF (-20ºC to 60ºC)
• Relative Humidity: 80% non-condensing
• Maximum Altitude: 6,562 ft (2,000 m)
• Battery Type: 9 V Alkaline (NEDA 1604)
• Battery Life: Approximately 90 hrs (No Backlight or Bluetooth)
• Bluetooth: 5.0 (350 ft range depending on obstacles)
• AC Amps: 1000 A
• DC Amps: 1100 A
• DC Microamps (uses test leads): 600 uA
• AC Voltage: 750 V
• DC Voltage: 1000 V
• Resistance: 60 MΩ
• Capacitance: 60 mF
• Frequency: 6 MHz
• Duty Cycle: Yes (up to 60 kHz)
• In-Rush Current: Yes
• Record Mode (min/max/avg): Yes
• Relative Mode: Yes
• Diode Test: Yes
• Continuity: Yes
• Non-Contact Voltage: Yes
• Active Power, Reactive Power: Yes
• Apparent Power, DC Power: Yes
• AC Voltage / AC Amperage Unbalance: Yes
• Phase Rotation: Yes
• Backlight Display: Yes
• Bluetooth LE: Yes
