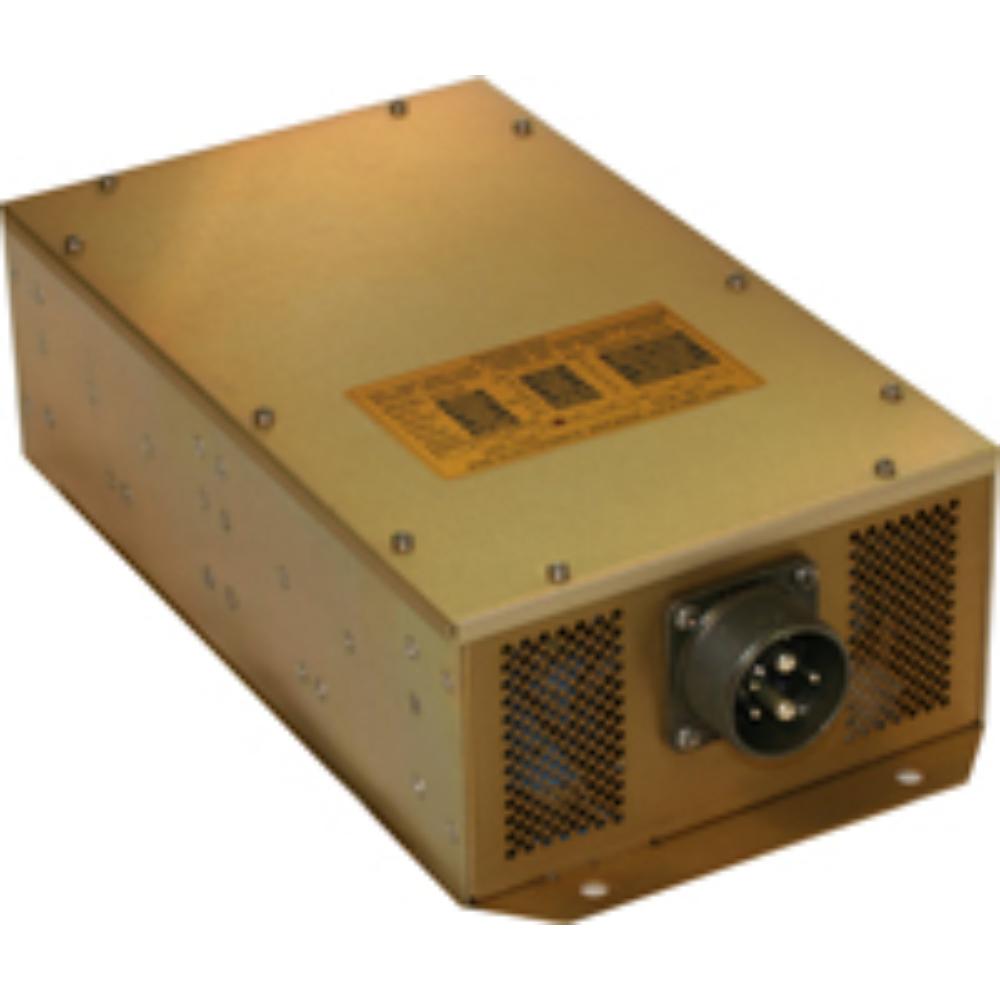

HS and HB Models
Price range: $9,800.00 through $10,840.00
50/60 Hz AC Frequency Power Converter
500 to 1200VA
The HS and HB series are lightweight, ACÂ frequency power converters. These models utilize the latest state of the art solid state circuitry to convert a 115/200 VAC, 3 phase, 400 Hz input to either a 115 VAC, 60 Hz or 230 VAC, 50 Hz sine wave output.
Design features include a crystal controlled oscillator for output frequency stability and a pulse-width-modulated square to sine wave power conversion scheme for efficient & reliable operation.
The model HS and HB Series frequency changers are designed to power laptop computers, audio/video entertainment systems, portable electronics (stereo, MP3, CD, DVD, video games, etc.), microwave ovens, coffee makers and medical equipment in mobile, marine and ground transport applications
Specifications
115/200 VAC ± 10 VAC, 3 phase
400 Hz ±100 Hz
Single
0.5% (nominal)
+.8 to -0.8
87%(nominal)
300 uSec (no load to full load)
1% Line, 1% Load, 2.5% Temp.
110% of the rated output power for a period of 2 hours; 150% of the rated output current for a period of 5 minutes (minimum). When the operating temp. >55°C, the overload setting is internally limited to 135% ± 10% of the rated output power.
The converter will shutdown under the following conditions:
- Input voltage > 135 VAC ± 5 VAC
- Input voltage < 95 VAC ± 5 VAC
- Internal, high ambient temperature.
- Short circuit condition.
Yes
55°C to 71°C (-65°F to +160°F)
55,000 Ft.
DO-160C env. cat.
F3ZBB[LV]XXXXXXBXAXXXBXXX
Thermostatically controlled, brushless fan.
Model |
Input Current (A/PH) |
|
|
Wt Lb (Kg) ±5% |
|||||||||
| HS50 | 2.0 |
|
|
4.4 (2.00) | |||||||||
| HS100 | 3.4 |
|
|
7.5 (3.40) |
|||||||||
| HS120 | 4.5 |
|
|
7.5 (3.40) |
|||||||||
| HB100 | 3.4 |
|
|
7.5 (3.40) | |||||||||
| HB120 | 4.5 |
|
|
7.5 (3.40) |
| PINS | HS50 | HS100/HS120 | HB100/HB120 |
| A | OUTPUT 116 VAC, 60 Hz | OUTPUT 116 VAC, 60Hz | OUTPUT 230 VAC, 50Hz |
| B | INPUT Ø A, 115/200 VAC | INPUT Ø A, 115/200 VAC | INPUT Ø A, 115/200 VAC |
| C | INPUT Ø B, 115/200 VAC | INPUT ØB, 115/200 VAC | INPUT ØB, 115/200 VAC |
| D | OUTPUT RETURN (NEUTRAL) | OUTPUT RETURN (NEUTRAL) | OUTPUT RETURN (NEUTRAL) |
| E | INPUT ØC, 115/200 VAC | INPUT Ø C, 115/200 VAC | INPUT Ø C, 115/230 VAC |
| F | REMOTE ON-OFF | REMOTE ON-OFF | REMOTE ON-OFF |
| G | INPUT RETURN, CHASSIS GND | INPUT RETURN, CHASSIS GND | INPUT RETURN, CHASSIS GND |
| MATE | MS3106A18-9S OR EQUIV. | MS3106A18-9SW OR EQUIV. | MS3106A18-9SW OR EQUIV. |
| Brand | KGS Electronics |
|---|---|
| Model | HS50, HS100, HS120, HB100, HB120 |
