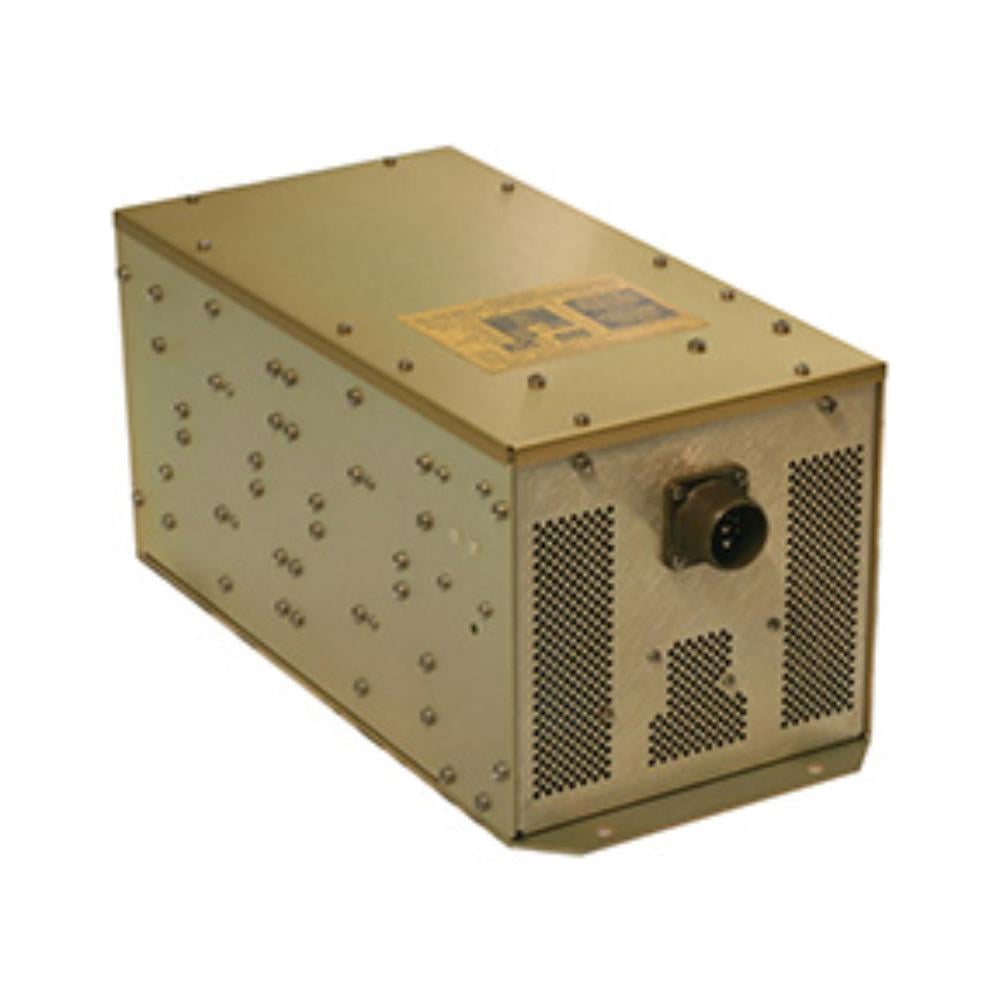

HS200 & HB200
$18,620.00
50/60 Hz AC Frequency Power Converters
2 KVA SINEWAVE
The HS200 & HB200 are highly efficient, lightweight AC frequency power converters. These models utilize the latest state of the art solid state circuitry to convert a 115/200 Vac, 400 Hz, 3 PH input to 115 Vac, 60 Hz or 230 Vac, 50 Hz sine wave output.
Design features include a crystal-controlled oscillator for output frequency stability and a pulse-width-modulated square to sine wave power conversion scheme for efficient and reliable operation.
The HS200 and HB200 static frequency changers are designed to power laptop computers, audio/video entertainment systems, portable electronics (stereo, MP3, CD, DVD, video games, etc.), microwave ovens, coffee makers and medical equipment in mobile, marine and ground transport applications.
Specifications
115/200 Vac ± 10 Vac
400 Hz ± 200 Hz
HS200: 115 Vac (108 to 120 Vac)
HB200: 230 Vac (216 to 240 Vac)
HS200: 60 HZ (± 0.1 Hz)
HB200: 50 HZ (± 0.1 Hz)
Sine
0.5 % (nominal)
+0.8 TO -0.8
Single
87% (nominal)
300 uSec (No Load to Full Load)
1 % Line, 1 % Load, 2.5 % Temperature
110 % of rated power for 2 hrs, 150 % of rated power for 5 minutes
The inverter will shutdown under the following conditions:
- Input voltage >137 ± 5Vac.
- Input voltage < 80Vac ± 20Vac.
- Internal high ambient temperature.
- Short circuit condition (after 2 to 15 Sec)(manual reset)
Yes
-55 ° C to +71 ° C (-65 ° F to +160 ° F)
55,000 ft
RTCA DO-160C Env. Cat. F3ZBB[ LV] E1XXXXXBXAXXXBXXX
Thermostatically controlled brushless fan (ON above 50 ° C)
17.7 lbs (8.04 kgs)
| Brand | KGS Electronics |
|---|---|
| Model | HS200, HB200 |
