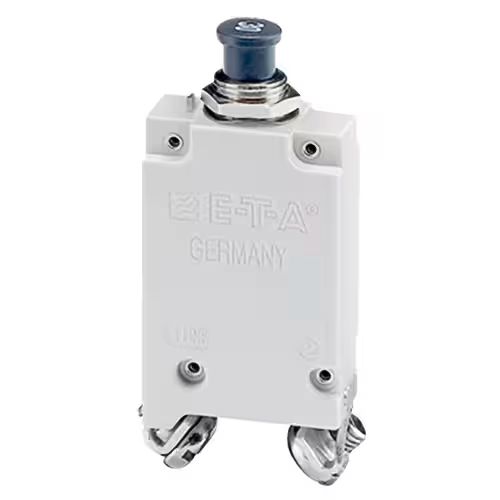

K14LN2 Series Circuit Breaker | 5 Amp Rating, Push/Pull Actuator
$148.79
25
Items sold in last 13 days
5
People watching this product now!
Description
The K14LN2 series high performance, thermal, single-pole, circuit breaker has a tease-free, trip-free, snap action mechanism with push-pull, on-off manual actuation. The tripped-off position is clearly shown by a colored band.
This K14LN2 series circuit breaker is rated for 5 amps and includes hardware.
Features
- 5 Amp current rating @ 28 VDC
- Designed for extra low voltage wiring applications
- Suitable for all types of land, sea, and air vehicles as well as defense equipment and battery powered machines.
Specifications
-
Weight: 65 grams (approx.)
-
Current Rating: 5 amps
-
Voltage Rating: 28 VDC
-
Typical Life: 2,000 operations
-
Ambient Temperature: -55°C to 75°C (-67°F to 167°F)
-
Insulation Resistance: >100 MΩ (500 VDC)
-
Interrupting Capacity: 6,000A
-
Degree of Protection (IEC 60529/DIN 40050): operating area IP40 terminal area IP00
-
Vibration: 10 g (56-500 Hz), ± 0.76 mm (10-55 Hz) to VG 95210, sheet 19, MIL-STD-202, meth. 204, IEC 60068-2-6, test Fc
-
Shock: 50 g (11 ms) to VG 95210, sheet 28, MIL-STD-202, meth. 213, IEC 60068-2-27, test Ea
-
Corrosion: 96 hours at 5 % salt mist, to VG 95210, sheet 2, MIL-STD-202, meth. 101, IEC 60068-2-11, test Ka
-
Humidity: 240 hours at 95 % RH to VG 95210, sheet 7, MIL-STD-202, meth. 106, IEC 60068-2-3, test Ca
Additional information
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
Klixon |
