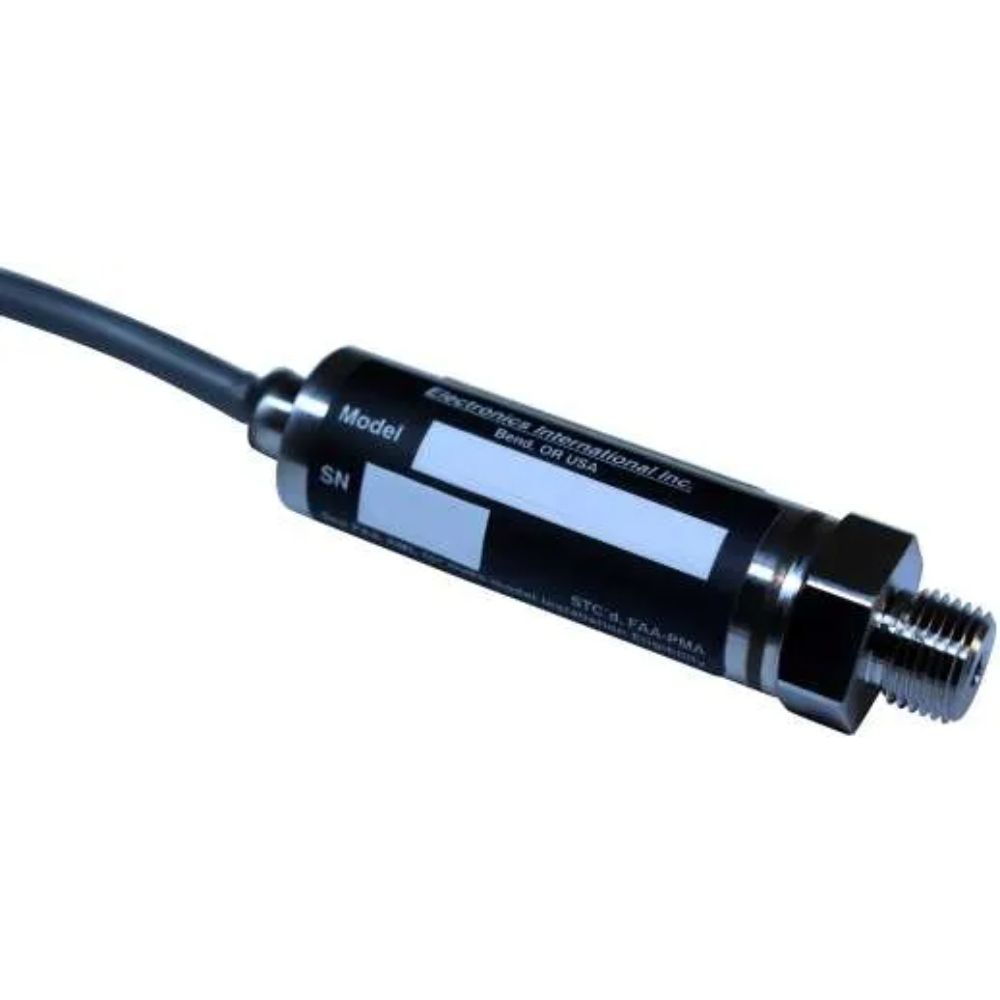

PT-3000S – Hydraulic Pressure Transducer
$380.00
FAA Approved Instrument
- FAA TSO’d, STC’d, PMA’d
- Accurate and stable, precise pressure measurements.
- Robust Construction, stainless steel body and pressure ports.
- Perfected over decades of testing and field trials.
- Other models available, see below for more details.
Specifications
Type: Gauge Pressure
Working Pressure: 0-3,450 PSI
Over Pressure: 6,000 PSI
Burst Pressure: 12,000 PSI
Accuracy: +/- 1%
Output: Ratiometric to P.S. (10 mV/V)
Material: 316L SS
Power Supply: 5-14 Vdc
Certifications: FAA TSO’d, STC’d, PMA’d
Retail Prices
Packages include:
- PT-3000S Hydraulic Pressure Transducer
- OLC-1 Connectors (4)
- Installation Instructions
| Description | Model | Retail Price |
| PT-3000S Hydraulic Pressure Transducer | PT-3000S | $348 |
PT-3000S – Hydraulic Pressure Transducer
$348.00
- Stainless Steel
- Pressure Range: 0 – 3,450 PSI
- Perfected Over Decades of Testing & Field Trials
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
Electronics International |
SHIPPING INFORMATION
We can ship by UPS, or USPS and DHL Express. We ship nationally, and internationally.
Carriers In Use
SHIPPING COSTS
- International Shipping Quote has to be done manually due to dimensions, weight, end destination, and more. Please E-Mail us.
- Any manner or method is available, call if you need Priority 1-2 day or overnight shipping.
- We are shipping with UPS or USPS and DHL Express
