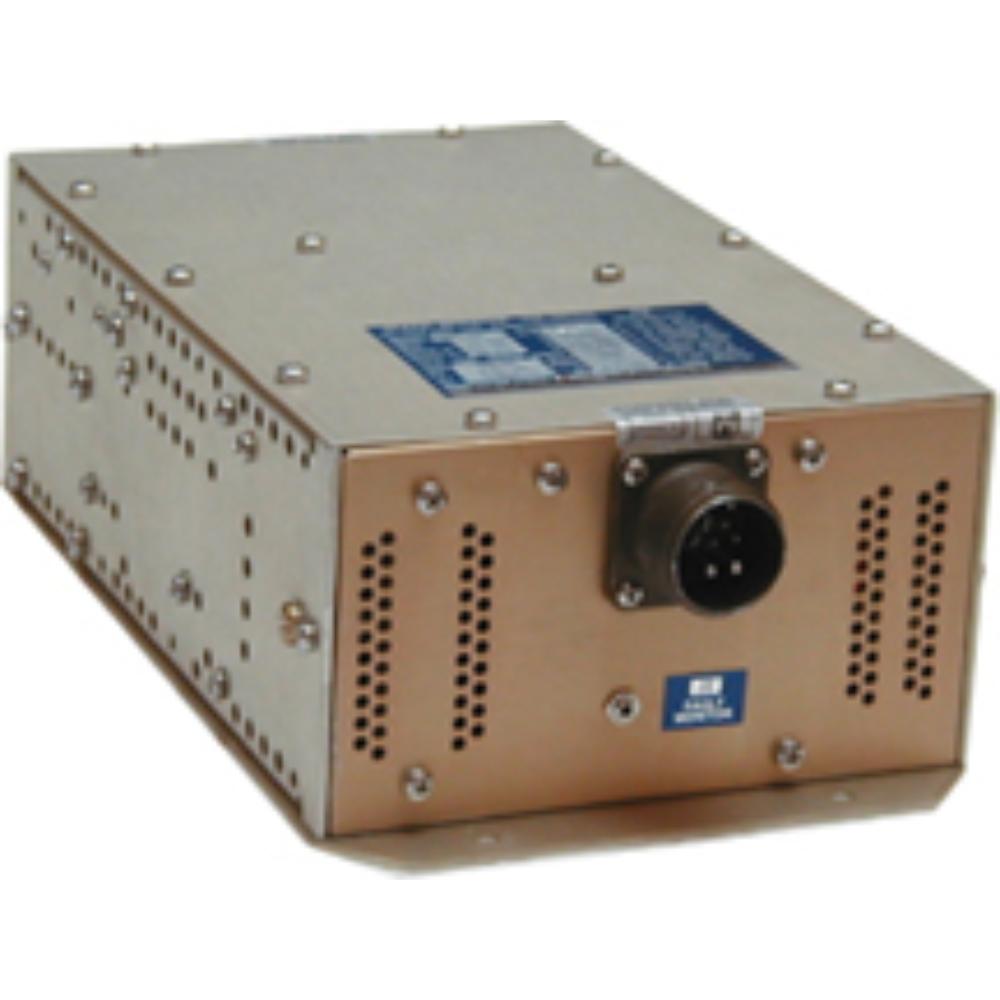

TSO’D 400HZ Â STATIC INVERTER
375 VA
The SPC-38( ) static inverter utilizes solid state circuitry to convert 28 VDC to 115 VAC, 400 Hz sine wave power. Design features include transformerless square to sine power conversion permitting light weight and reliable operation.
The SPC-38( ) is capable of delivering an overload of 150% of rated power for a duration not less than five minutes under all environmental conditions.
Features:
- Foldback current limit during overload.
- 200% output current capability for fault clearance.
- Remote on-off feature to eliminate the need for a heavy and expensive solenoid.
- Shut down in the event of Low/Hi frequency and overvoltage malfunction.
- Soft start logic in conjunction with step input and any restart after output short, output shutdown or remote off. Prevents inverter from drawing heavy surge current during start transition.
- Fault monitor output for malfunction indication noted above.
Specifications
Input Voltage
Nominal; 28.0 VDC ± 4 VDC
Range: 20 to 37 VDC
Nominal; 28.0 VDC ± 4 VDC
Range: 20 to 37 VDC
Input Current
16A @ full load
2A max @ no load
16A @ full load
2A max @ no load
Output Voltage
-5% -7% (± 2% typ. on 115V)
-5% -7% (± 2% typ. on 115V)
Output #1
115 VAC (375 VA max. cont.)
115 VAC (375 VA max. cont.)
Output #2
26 VA (75 VA max. cont.)
26 VA (75 VA max. cont.)
Output Power
375 VA Total max. cont.
(Sum of 115 and 26 VAC outputs)
375 VA Total max. cont.
(Sum of 115 and 26 VAC outputs)
Output Frequency
400 Hz ± 1%
400 Hz ± 1%
Phase & Waveform
Single phase sine wave.
Single phase sine wave.
Harmonic Distortion
2.0% typ. (5% max.) 20 to 37 VDC in.
2.0% typ. (5% max.) 20 to 37 VDC in.
Power Factor
.8 to -.95
.8 to -.95
Efficiency
83% typical.
83% typical.
Temperature
-55°C to 71°C
-55°C to 71°C
Weight
8.0 lbs.
8.0 lbs.
Overload Capacity
Capable of 150% output current @ normal AC output for 5 minutes.
Capable of 150% output current @ normal AC output for 5 minutes.
Input Overvoltage
Withstand 130% input overvoltage for 5 minutes while supplying full rated VA output power. Output voltage under this condition 115 VAC +5% -7%
Withstand 130% input overvoltage for 5 minutes while supplying full rated VA output power. Output voltage under this condition 115 VAC +5% -7%
Input Voltage Protection
Inverter withstands transients of 88 volts lasting 1 mSec on the 28.0 VDC input line.
Inverter withstands transients of 88 volts lasting 1 mSec on the 28.0 VDC input line.
Overload & Output Short Circuit Protection
Withstand without damage or degradation loads exceeding 150% of rated output to an output short circuit. Inverter delivers rated output on removal of above conditions. 200% output current for fault clearance.
Withstand without damage or degradation loads exceeding 150% of rated output to an output short circuit. Inverter delivers rated output on removal of above conditions. 200% output current for fault clearance.
Altitude
55,000 ft.
55,000 ft.
Humidity
Tested to greater than 95% for ten days, temperature cycled between 75°F to 160°F.
Tested to greater than 95% for ten days, temperature cycled between 75°F to 160°F.
Environmental
Qualified to meet RTCA DO-160 env. cat. D2BR—-
Qualified to meet RTCA DO-160 env. cat. D2BR—-
1. Total continuous output power is 375 VA
| MODEL | OUTPUT VOLTAGE | OUTPUT POWER VA | CONNECTOR PLUG | INPUT VOLTAGE RANGE | WEIGHT LBS. (KG.) |
| SPC-38( ) | 26/115 VAC | 75/375 (1) | MS3106B18-9S | 20-37 | 8.5 (3.8 kg.) |
| SPC-38(A) | 26/115 VAC | 75/375 (1) | MS3106B18-9SW | 20-37 | 8.5 (3.8 kg.) |
| SPC-38(B) | 26/115 VAC | 75/375 (1) | MS3106B18-9SW | 20-37 | 8.5 (3.8 kg.) |
| SPC-38(T) | 26/115 VAC | 75/375 (1) | MS3106B18-9S | 16-32 | 8.5 (3.8 kg.) |
Additional information
| Brand | KGS Electronics |
|---|---|
| Model | SPC-38( ), SPC-38(A), SPC-38(B), SPC-38(T) |
