W23 Series Thermal Circuit Breaker | 30 Amp Rating, Push/Pull Actuator
$42.85
A tariff fee of $3.6460 EA may apply.

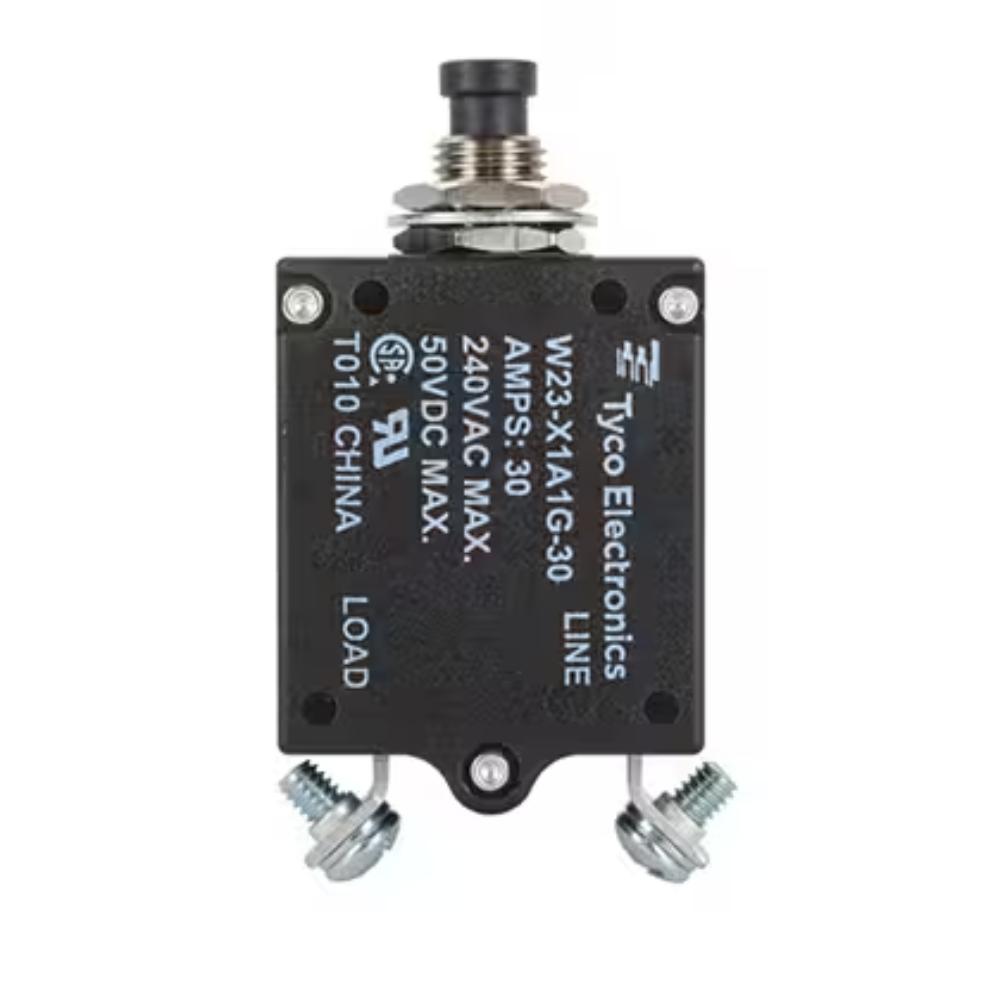

The W23 series are panel-mount thermal circuit breakers with a push/pull actuator and series trip function. The thermal type breakers have an interrupt capacity of 1000 amps at 50 VDC or 120 VAC. The button color has black with white amp rate mark and white trip band.
Includes hardware.
Features
The W23-X1A1G-30 circuit breaker is rated for 30 amps.
- Single Pole
- Series trip
- Push/pull actuator
- 0.5 amp to 50 amp ratings may be used as on/off switch
- Cannot be reset against overload
- Visible trip indicator band
- Screw termination
- Trip-free operation
- Potter & Brumfield
Specifications
Weight:
Less than 2 oz. (57g)
Endurance Cycling:
More than 6,000 cycles at 100% of rating, or 10,000Â mechanical cycles
Dielectric Strength:
Over 1,500 volts RMS
Terminals:
#8-32 screw terminals
Current Rating:
30 amps
Mounting:
Panel mount
Voltage Rating :
AC 240V
DC 50V
Number of Poles:
1
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | TE Connectivity |
